Efficient expression of foreign genes in human CD34+ hematopoietic precursor cells using electroporation

Gene Therapy volume 8, pages 384–390 (2001)Cite this article

Abstract

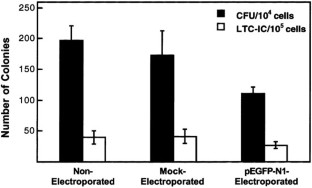

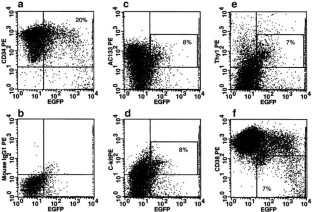

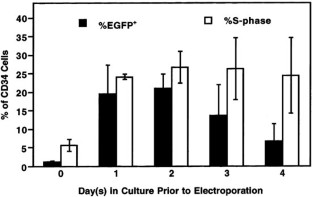

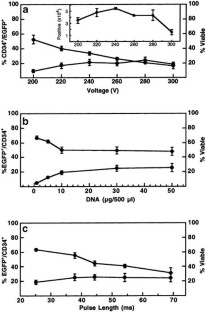

Introduction of foreign genes into human CD34+ hematopoietic precursor cells offers a means to correct inborn errors or to protect human stem cells from chemotherapeutic damage. Electroporation is a non-chemical, nonviral, highly reproducible means to introduce foreign genes into mammalian cells that has been used primarily for rapidly dividing cells. CD34+ cells isolated from mobilized peripheral blood of patients were cultured for 48 h in serum-free culture medium supplemented with Flt-3 ligand, stem cell factor and thrombopoietin. Cell cycle analysis showed an increase in % S-phase from 2% on day 0 to 28% on day 2 without significant loss of mean fluorescence intensity (MFI). Optimal electroporation conditions for CD34+ cells were 550 V/cm, 38 ms, 30 μg DNA/500 μl at cell densities between 0.2 × 106 and 10 × 106 cells/ml resulting in transient EGFP gene expression in 21% (± 1%) of CD34+ precursor cells, as determined by flow cytometry 48 h after electroporation. The more primitive cells were also found to be EGFP+ as determind by subset analysis using Thy1, CD38, AC133 and c-kit conjugated monoclonal antibodies. Methylcellulose assays on electroporated CD34+ cells yielded 20% (± 7%) EGFP+ colonies (CFU-GM, BFU-E and CFU-mix) and 22% (± 5%) EGFP+ long-term colony-initiating cells (LTC-IC). The reporter gene was found to be integrated into the LTC-IC genomic DNA as determined by inverse PCR and DNA sequencing. These results suggest that electroporation has the potential to effectively and stably deliver exogenous genes into human hematopoietic precursor cells.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6

Similar content being viewed by others

References

  1. Bertolini F et al. Gene transfer-mediated generation of drug-resistant hemopoiesis Leuk Lymphoma 1996 21: 17–23

    Article  CAS  PubMed  Google Scholar

  2. Fruehauf S et al. Retroviral transfer of the multidrug resistance-1 gene into lineage-committed and primitive hemopoietic cells Stem Cells 1995 13 (Suppl. 3): 93–99

    Article  PubMed  Google Scholar

  3. Srivastava A . Parvovirus-based vectors for human gene therapy Blood Cells 1994 20: 531–536; discussion 536–538

    CAS  PubMed  Google Scholar

  4. Toneguzzo F, Keating A . Stable expression of selectable genes introduced into human hematopoietic stem cells by electric field-mediated DNA transfer Proc Natl Acad Sci USA 1986 83: 3496–3499

    Article  CAS  PubMed  PubMed Central  Google Scholar

  5. Toneguzzo F, Hayday AC, Keating A . Electric field-mediated DNA transfer: transient and stable gene expression in human and mouse lymphoid cells Mol Cell Biol 1986 6: 703–706

    Article  CAS  PubMed  PubMed Central  Google Scholar

  6. Toneguzzo F, Keating A, Glynn S, McDonald K . Electric field-mediated gene transfer: characterization of DNA transfer and patterns of integration in lymphoid cells Nucleic Acids Res 1988 16: 5515–5532

    Article  CAS  PubMed  PubMed Central  Google Scholar

  7. Dev SB, Hofmann GA . Clinical application of electroporation. In: Lynch PT, Davey MR (eds) Electrical Manipulation of Cells Chapman & Hall: New York 1996 185–199

    Chapter  Google Scholar

  8. Chang DC, Reese TS . Changes in membrane structure induced by electroporation as revealed by rapid-freezing electron microscopy Biophys J 1990 58: 1–12

    Article  CAS  PubMed  PubMed Central  Google Scholar

  9. Scheding S et al. Ex vivo expansion of hematopoietic progenitor cells for clinical use Semin Hematol 1998 35: 232–240

    CAS  PubMed  Google Scholar

  10. von Kalle C et al. New developments in hematopoietic stem cell expansion Curr Opin Hematol 1998 5: 79–86

    Article  CAS  PubMed  Google Scholar

  11. Gabbianelli M et al. Multi-level effects of flt3 ligand on human hematopoiesis: expansion of putative stem cells and proliferation of granulomonocytic progenitors/monocytic precursors Blood 1995 86: 1661–1670

    CAS  PubMed  Google Scholar

  12. Breems DA et al. Stroma-contact prevents loss of hematopoietic stem cell quality during ex vivo expansion of CD34+ mobilized peripheral blood stem cells Blood 1998 91: 111–117

    CAS  PubMed  Google Scholar

  13. Dao MA, Hashino K, Kato I, Nolta JA . Adhesion to fibronectin maintains regenerative capacity during ex vivo culture and transduction of human hematopoietic stem and progenitor cells Blood 1998 92: 4612–4621

    CAS  PubMed  Google Scholar

  14. Brandt JE et al. Bone marrow repopulation by human marrow stem cells after long-term expansion culture on a porcine endothelial cell line Exp Hematol 1998 26: 950–961

    CAS  PubMed  Google Scholar

  15. Ramsfjell V, Borge OJ, Cui L, Jacobsen SE . Thrombopoietin directly and potently stimulates multilineage growth and progenitor cell expansion from primitive (CD34+ CD38−) human bone marrow progenitor cells: distinct and key interactions with the ligands for c-kit and flt3, and inhibitory effects of TGF-beta and TNF-alpha J Immunol 1997 158: 5169–5177

    CAS  PubMed  Google Scholar

  16. Goff JP, Shields DS, Greenberger JS . Influence of cytokines on the growth kinetics and immunophenotype of daughter cells resulting from the first division of single CD34(+)Thy− 1(+)lin− cells Blood 1998 92: 4098–4107

    CAS  PubMed  Google Scholar

  17. Haylock DN et al. Increased recruitment of hematopoietic progenitor cells underlies the ex vivo expansion potential of FLT3 ligand Blood 1997 90: 2260–2272

    CAS  PubMed  Google Scholar

  18. Dao MA, Nolta JA . Inclusion of IL-3 during retrovirally-mediated transduction on stromal support does not increase the extent of gene transfer into long-term engrafting human hematopoietic progenitors Cytokines Cell Mol Ther 1997 3: 81–89

    CAS  PubMed  Google Scholar

  19. Murray LJ et al. Thrombopoietin, flt3, and kit ligands together suppress apoptosis of human mobilized CD34+ cells and recruit primitive CD34+ Thy-1+ cells into rapid division Exp Hematol 1999 27: 1019–1028

    Article  CAS  PubMed  Google Scholar

  20. Nolta JA et al. Retroviral vector-mediated gene transfer into primitive human hematopoietic progenitor cells: effects of mast cell growth factor (MGF) combined with other cytokines Exp Hematol 1992 20: 1065–1071

    CAS  PubMed  Google Scholar

  21. Mazurier F et al. Rapid analysis and efficient selection of human transduced primitive hematopoietic cells using the humanized S65T green fluorescent protein Gene Therapy 1998 5: 556–562

    Article  CAS  PubMed  Google Scholar

  22. Knutson JC, Yee D . Electroporation: parameters affecting transfer of DNA into mammalian cells Anal Biochem 1987 164: 44–52

    Article  CAS  PubMed  Google Scholar

  23. Van Tendeloo VF et al. Nonviral transfection of distinct types of human dendritic cells: high-efficiency gene transfer by electroporation into hematopoietic progenitor- but not monocyte-derived dendritic cells Gene Therapy 1998 5: 700–707

    Article  CAS  PubMed  Google Scholar

  24. Robinet E et al. A closed culture system for the ex vivo transduction and expansion of human T lymphocytes J Hematother 1998 7: 205–215

    Article  CAS  PubMed  Google Scholar

  25. Malech HL et al. Prolonged production of NADPH oxidase-corrected granulocytes after gene therapy of chronic granulomatous disease Proc Natl Acad Sci USA 1997 94: 12133–12138

    Article  CAS  PubMed  PubMed Central  Google Scholar

  26. Cormack BP, Valdivia RH, Falkow S . FACS-optimized mutants of the green fluorescent protein (GFP) Gene 1996 173: 33–38

    Article  CAS  PubMed  Google Scholar

  27. Raponi M, Dawes IW, Arndt GM . Characterization of flanking sequences using long inverse PCR Biotechniques 2000 2: 838–840, 842, 844

    Article  Google Scholar

Download references

Acknowledgements

This work was supported by United States Public Health Service grants CA81485, CA71627 (MED), and a breast cancer planning grant awarded to The University of Chicago Cancer Center CA66132.
