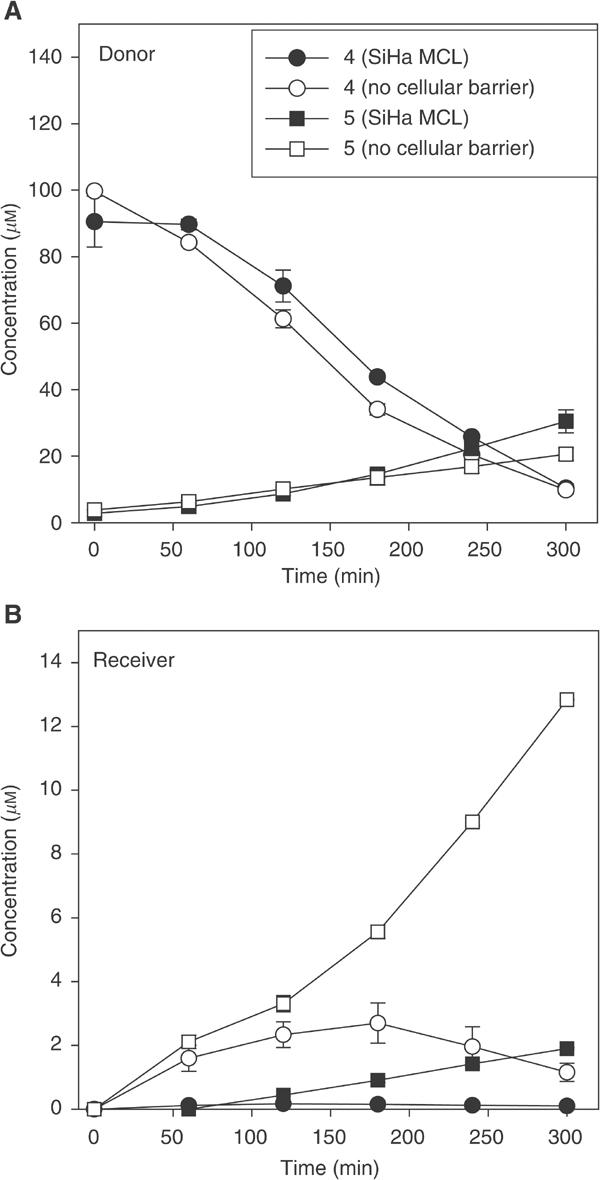

Figure 4

Transport of the 4-hydroxylamine metabolite of CB 1954 (4) through bare collagen/Teflon support membranes (open symbols) and through SiHa MCLs (closed symbols), and formation of the corresponding 4-amine (5). Values are the mean±range from two MCLs.
