Figure 4 | British Journal of Cancer

Figure 4

From: hTERT phosphorylation by PKC is essential for telomerase holoprotein integrity and enzyme activity in head neck cancer cells

Figure 4The alternative text for this image may have been generated using AI.

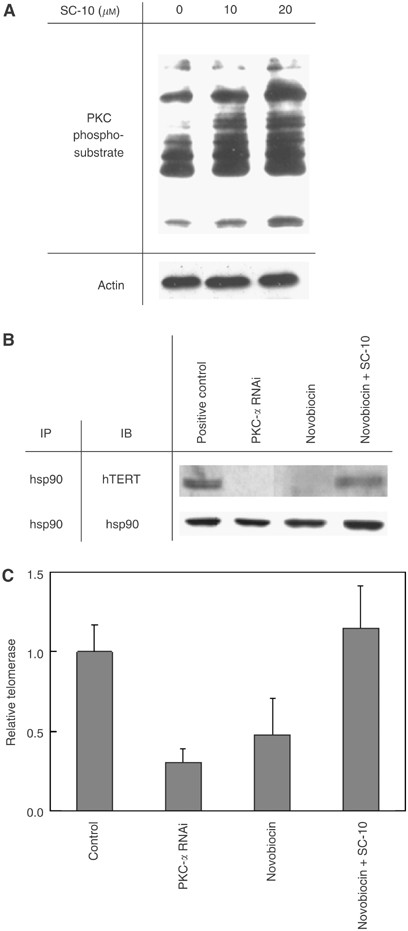

Effect of PKC phosphorylation on telomerase holoprotein integrity and the enzyme activity. (A) After treatment with 10 μ M SC-10, PKC activity was determined by examining the amount of PKC-phosphosubstrates using pan-antibody immunoblot analysis. (B) Association study of hTERT-hsp90 and the influence of PKC phosphorylation. Lanes 1 and 2: Nuclear proteins from OEC-M1 cells with or without PKC-RNAi plasmid transfection were extracted and subjected to immunoprecipitation and immunoblot. Lanes 3 to 4: OEC-M1 cells were treated with 300 μ M novobiocin for 24 h to disrupt the hsp-hTERT association. Cells were harvested or continuously cultured with 10 μ M SC-10 for an additional 24 h (novobiocin+SC-10). Nuclear proteins were subjected to immunoprecipitation by hsp90 followed by immunoblot by hTERT or hsp90 (as control). (C) Alterations of telomerase activity after hTERT-hsp90 disruption and reassociation. Lanes 1 and 2: Cellular proteins from OEC-M1 cells with or without PKC-RNAi plasmid transfection were extracted for determination of telomerase activity by TRAP-EIA. Lanes 3 to 4: OEC-M1 cells were treated with 300 μ M novobiocin for 24 h to disrupt the hsp-hTERT association. Cells were harvested or continuously cultured with 10 μ M SC-10 for an additional 24 h. Cellular proteins were extracted for determination of telomerase activity.
