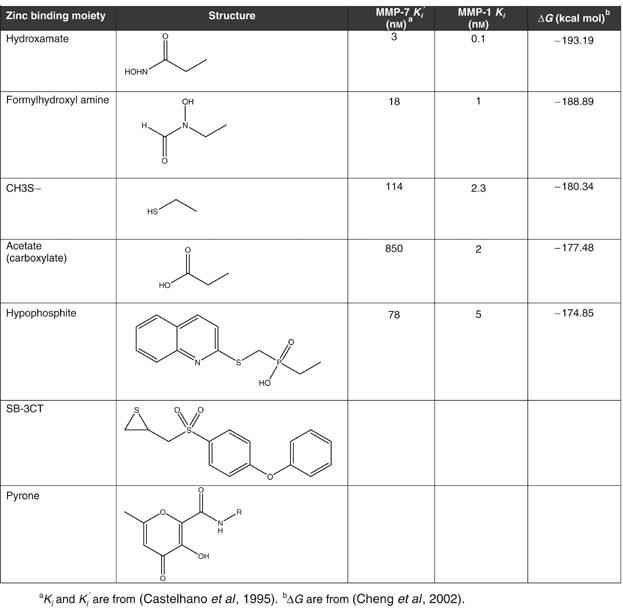

Figure 2
From: Towards third generation matrix metalloproteinase inhibitors for cancer therapy
The structures of zinc binding groups, their inhibitory constants, and calculated free energy for interaction with MMP catalytic zinc. The lower free energy (ΔG) for interaction with MMP catalytic zinc of hydroxamate-based inhibitors is well correlated with their superior inhibitory constants relative to other common zinc-binding groups. This attribute of hydroxamate-based inhibitors conceals the contribution of other groups in the inhibitor structure, and therefore reduces their selectivity.
