Figure 1 | British Journal of Cancer

Figure 1

From: In vitro evaluation of cancer-specific NF-κB-CEA enhancer–promoter system for 5-fluorouracil prodrug gene therapy in colon cancer cell lines

Figure 1

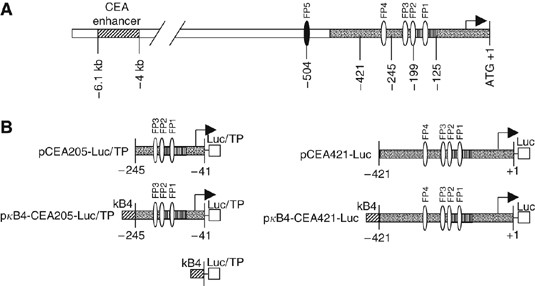

The schematic diagrams of the CEA promoter region and NF-κB enhancer- and CEA promoter-related constructs used in this study. (A) The promoter region of CEA gene. FP: footprint site; basal CEA promoter region; essential CEA promoter region; arrow: transcriptional starting point; (B) NF-κB enhancer- and CEA promoter-related constructs. Luc, luciferase cDNA; TP, thymidine phosphorylase cDNA.
