Figure 6
From: Gamera, a family of LINE-like repetitive sequences widely distributed in medaka and related fishes

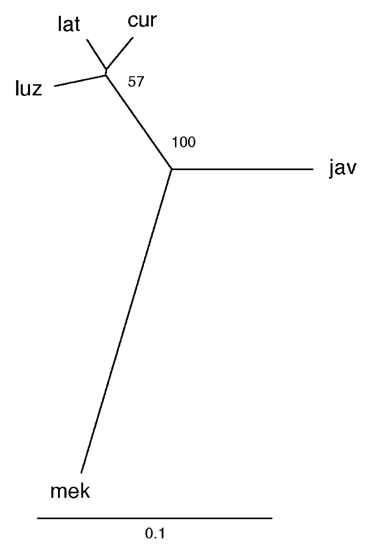

Phylogenetic tree constructed with Gamera sequences from five Oryzias species. PCR amplification was successful for five of the nine species (see text), and the PCR products were cloned into a plasmid vector. For each species, a single clone was randomly chosen and sequenced, and the data have been deposited in the EMBL database. The five species designated by their first three letters, the lengths of the sequences and the EMBL accession numbers are: cur, 795 bp, AB081573; jav, 795 bp, AB081574; lat, 795 bp, AB081575; luz, 789 bp, AB081576; mek, 782 bp, AB081577. The tree was constructed using the neighbour-joining method. Gaps in the luz and mek data were excluded from the calculation. The bootstrap percentages obtained with 1000 replicates are shown at the nodes.
