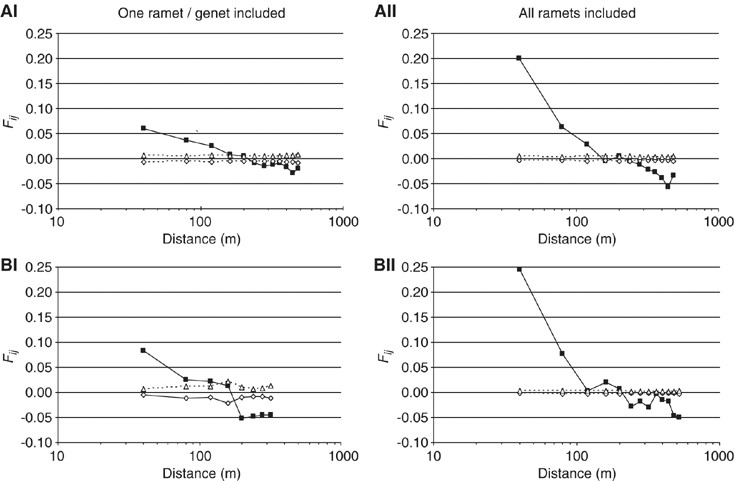

Figure 3
From: Distribution and fine-scale spatial-genetic structure in British wild cherry (Prunus avium L.)
Comparison of SGS in managed (A) and unmanaged (B) populations of wild cherry. Kinship coefficient (Fij) values are presented for one ramet per clonal group (AI and BI) and for all ramets (AII and BII) for each population. Fij values are indicated with a solid line and black square for each 40 m distance class on a logarithmic scale. Upper and lower 95% confidence limits for each distance class are indicated by a dotted line with an open triangle and diamond, respectively.
