Figure 13
From: Diffusion-driven currents in organic-semiconductor diodes

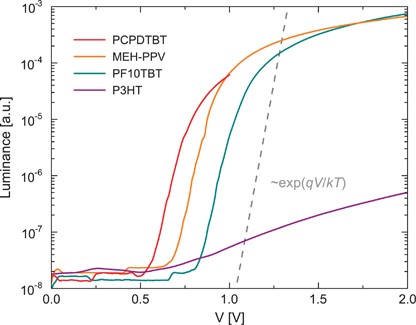

Luminance versus voltage characteristics for the charge-transfer state electroluminescence of several polymer:PCBM solar cells. The onset of emission is proportional to exp (qV/kT), plotted as a dashed line as a guide to the eye.
