Figure 4
From: Nanostructured carbon-based membranes: nitrogen doping effects on reverse osmosis performance

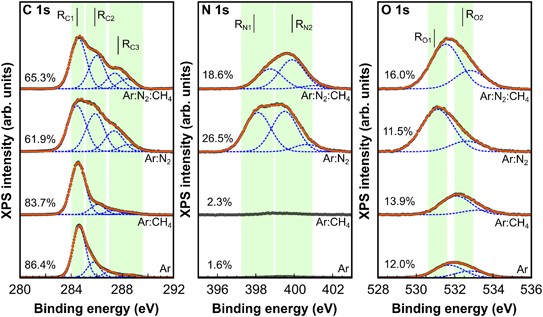

XPS spectra for sputtered NC-based membranes, produced with different gas mixtures. The C 1s, N 1s and O 1s peaks are shown, including their atomic percentage of total composition, and a deconvolution for general chemical species identification.
