Figure 4

From: Magnetic-field-induced spontaneous superlattice formation via spinodal decomposition in epitaxial strontium titanate thin films

Figure 4The alternative text for this image may have been generated using AI.

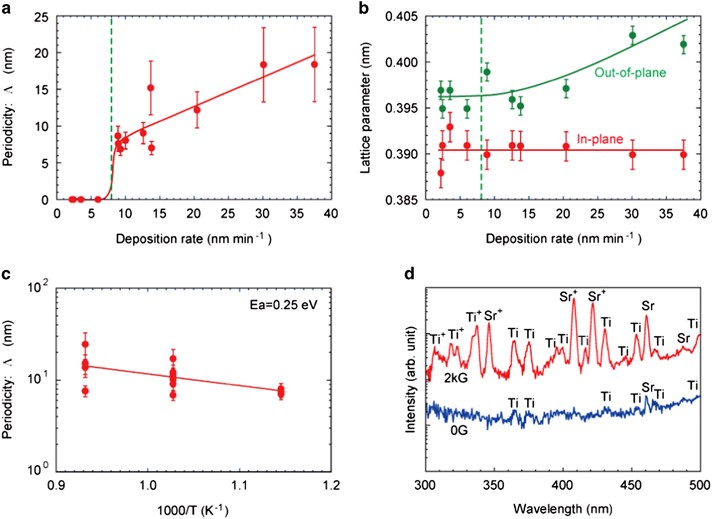

Characterization of spontaneous superlattice formation. (a) Change of periodicity with the deposition rate. (b) Change of the out-of-plane and in-plane lattice parameters with the deposition rate. (c) Arrhenius plot of periodicity. (d) Spectrogram of the plume with and without the application of a magnetic field during deposition.
