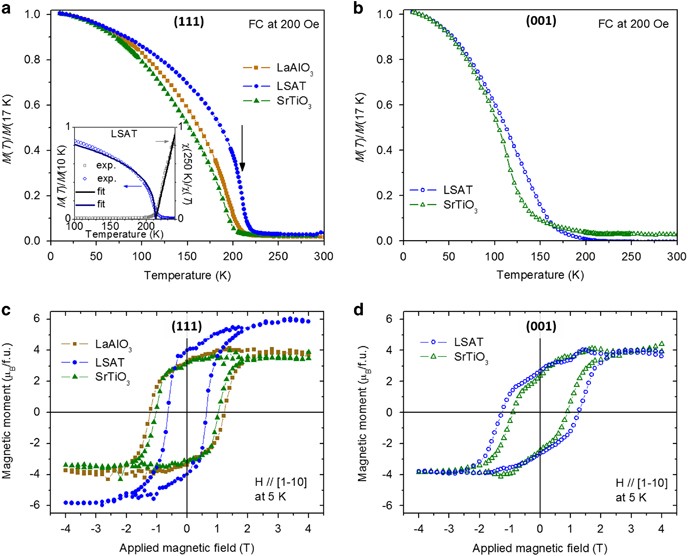

Figure 3
From: Route to achieving perfect B-site ordering in double perovskite thin films
The normalized M(T) data of the La2CoMnO6 films on (a) the (111)-oriented substrates and (b) the (001)-oriented substrates. The arrow in a marks the TC of La2CoMnO6 on LSAT (111) at 211 K. The inset of a shows normalized M(T) and χ(T) of La2CoMnO6 on LSAT (111) near TC as well as its corresponding Curie–Weiss fit. The in-plane M(H) hysteresis curves of the corresponding films at 5 K are shown in c and d. A linear paramagnetic background of the SrTiO3 substrate was subtracted.
