Figure 2 | British Journal of Cancer

Figure 2

From: Iodine-131 dose-dependent gene expression: alterations in both normal and tumour thyroid tissues of post-Chernobyl thyroid cancers

Figure 2

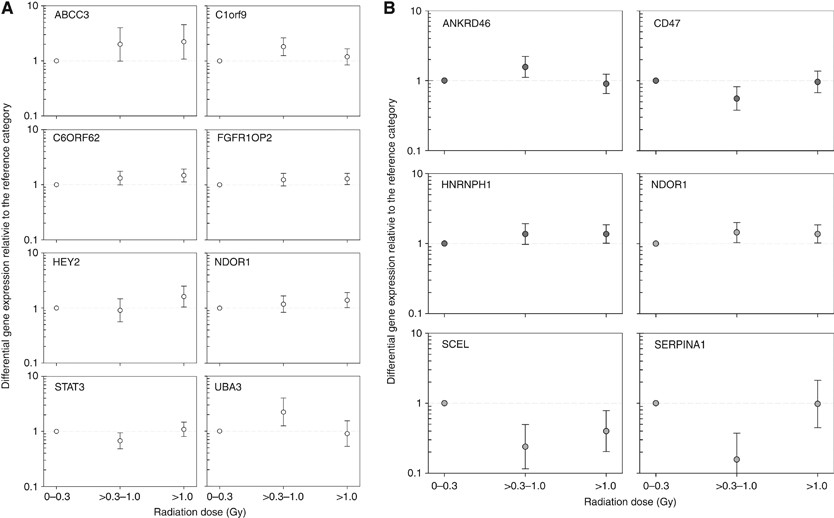

Gene expression is shown relative to the reference dose category (lowest I-131 thyroid dose set to 1, dashed grey line) for selected genes in (A) normal tissue (circles with white fills, first page) and (B) tumour tissue (circles with grey fills, second page). Circles represent mean gene expression values and error bars represent corresponding 95% confidence intervals.
