Figure 1 | Experimental & Molecular Medicine

Figure 1

From: ANT2 shRNA downregulates miR-19a and miR-96 through the PI3K/Akt pathway and suppresses tumor growth in hepatocellular carcinoma cells

Figure 1

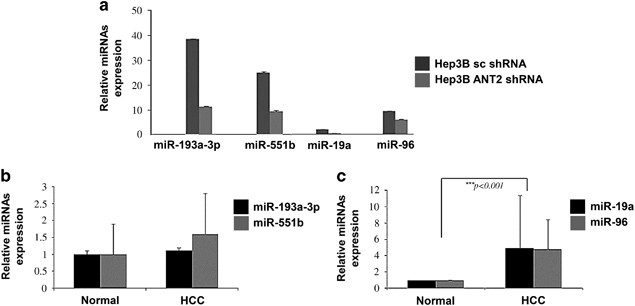

miR-19a and miR-96 are upregulated in human hepatocellular carcinoma (HCC) samples. (a) After 24 h of transfection with scramble and adenine nucleotide translocase 2 (ANT2) short hairpin RNA (shRNA) in Hep3B cells, total RNA was extracted and subjected to quantitative real-time PCR (RT-qPCR) using primers for miR-193a-3p, miR-551b, miR-19a, miR-96 or U6 (internal control). The mean±s.d. of triplicate samples is shown. (b, c) RT-qPCR of HCC tumor tissue pairs was carried out (n=30). The mean±s.d. is shown, and data were evaluated using Student’s t-test.
