Figure 3
From: Maternal and paternal genealogy of Eurasian taurine cattle (Bos taurus)

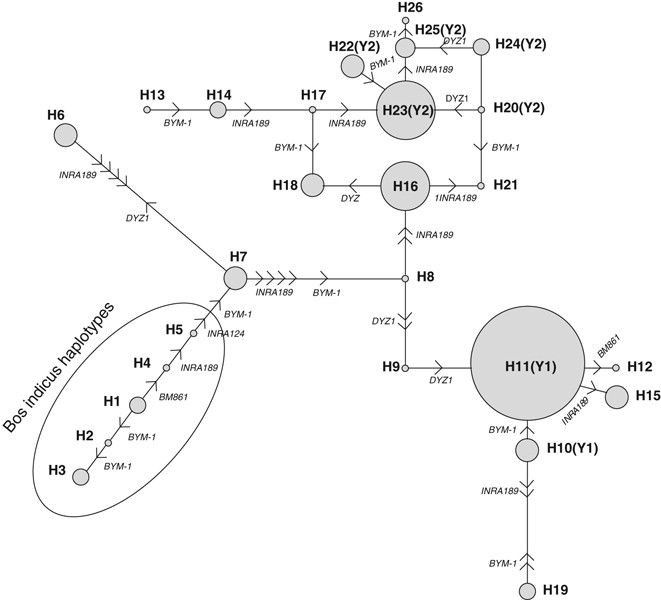

A MJ network relating the 26 Y-chromosomal microsatellites. The allelic combinations and codes of the haplotypes are given in Table 1. The haplogroups Y1 and Y2 are indicated if known for the haplotype. The Bos indicus haplotypes are shown. Arrows point in the direction of an increase in repeat number of 2 bp.
