Figure 8

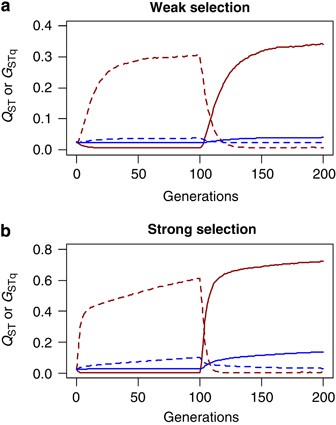

Response of QST (red lines) and GSTq(blue lines) to changes of divergent selection regimes. (a) Weak stabilizing selection during phases A and B. Solid line: transition from uniform to divergent selection (scenario 6). Dashed line: transition from divergent to uniform selection (scenario 10). (b) Strong stabilizing selection during phases A and B. Solid line: transition from uniform to divergent selection (scenario 5). Dashed line: transition from divergent to uniform selection (scenario 9), 50 repetitions of simulations were conducted for each scenario. Lines represent mean values of the repetitions.
