Figure 1
From: A 15q14 microdeletion involving MEIS2 identified in a patient with autism spectrum disorder

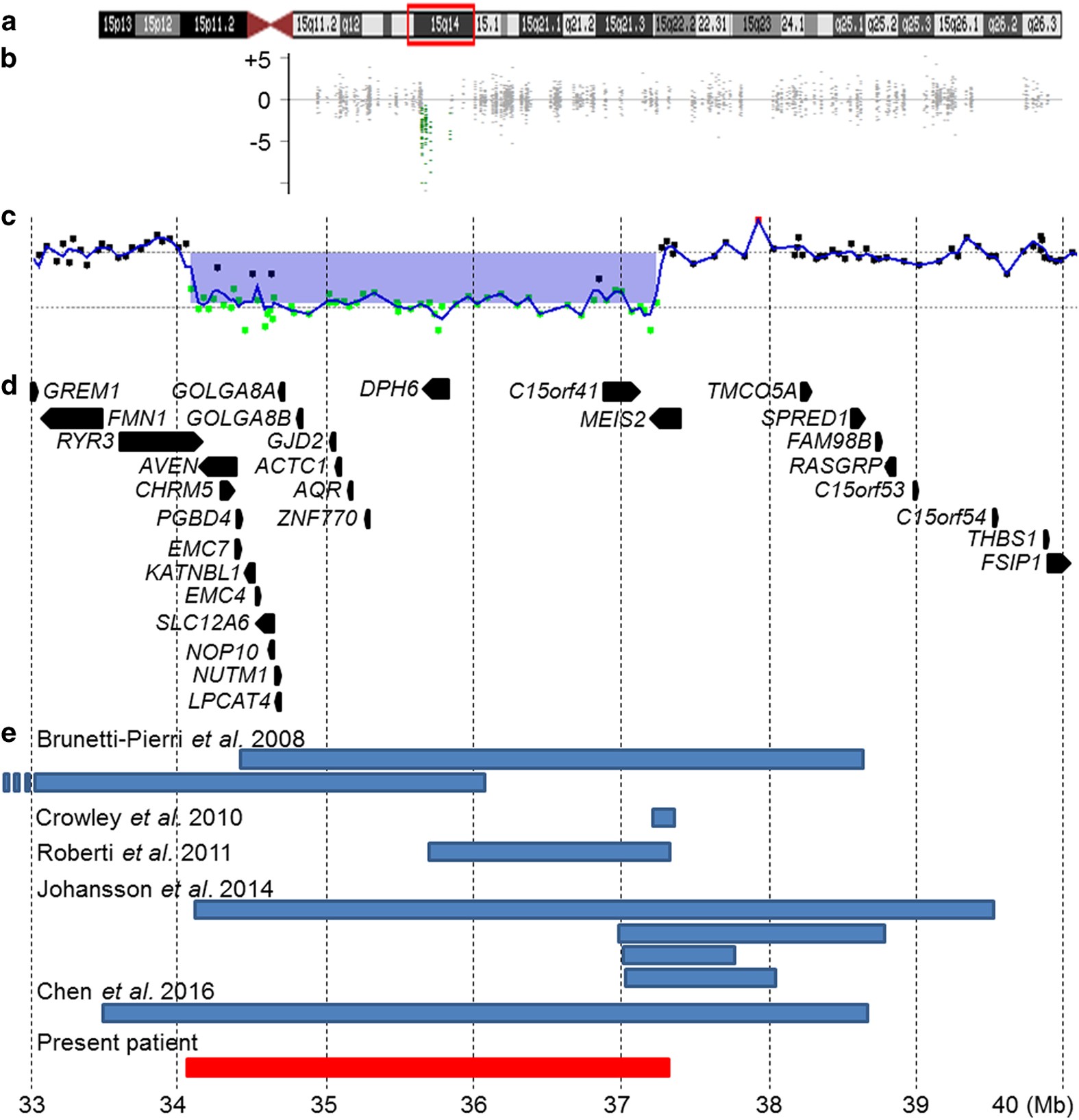

Genome map around 15q14 with the deletion regions in the reported patients. (a) Region of interest around 15q14 is shown by a red rectangle on the image of chromosome 15, captured from the UCSC genome browser (https://genome.ucsc.edu/). (b) XHMM shows a possible microdeletion in the 15q14 region. The x and y axes indicate the z-scores and genomic positions, respectively. (c) Data were extracted through chromosomal microarray testing. A GeneView created by Agilent Genomic Workbench (Agilent Technologies) is shown. The aberrant region is indicated by a blue transparent rectangle. (d) The locations, regions and directions of the genes are shown. (e) Previously reported deletions are shown with blue rectangles. MEIS2 is partially involved in the deletion region identified in the present patient, which is shown with a red rectangle. XHMM, eXome Hidden Markov Model.
