Figure 2 | Hypertension Research

Figure 2

From: Endothelial function does not improve with high-intensity continuous exercise training in SHR: implications of eNOS uncoupling

Figure 2

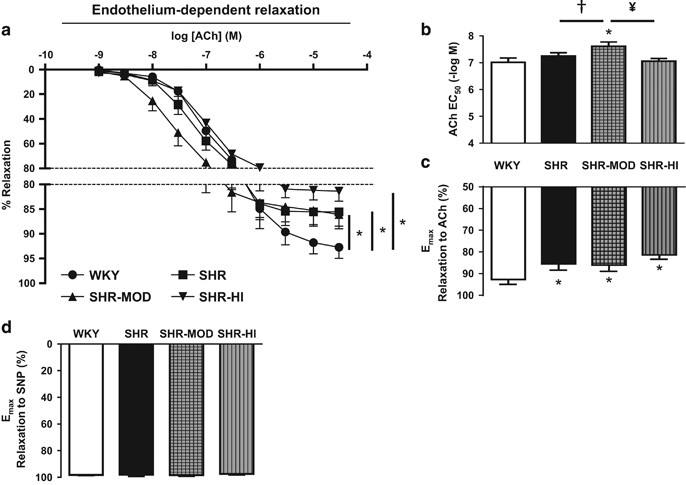

High-intensity exercise training does not correct endothelium dysfunction in SHR. (a) Dose-dependent response of aortic rings to cumulative doses of ACh. The data are expressed as the percentage of relaxation relative to the preconstriction level. (b) ACh concentration inducing 50% of the maximal response to ACh in aortic rings. (c) Maximal relaxation of aortic rings in response to Ach expressed as the percentage of relaxation relative to the preconstriction level. (d) Maximal relaxation of aortic rings in response to SNP, expressed as the percentage of relaxation relative to the preconstriction level. The values are the mean±s.e.m. *P<0.05 vs. WKY group. †P<0.05 vs. SHR group. ¥P<0.05 vs. SHR-MOD.
