From: Reconstructing an ancestral genotype of two hexachlorocyclohexane-degrading Sphingobium species using metagenomic sequence data

Figure 2

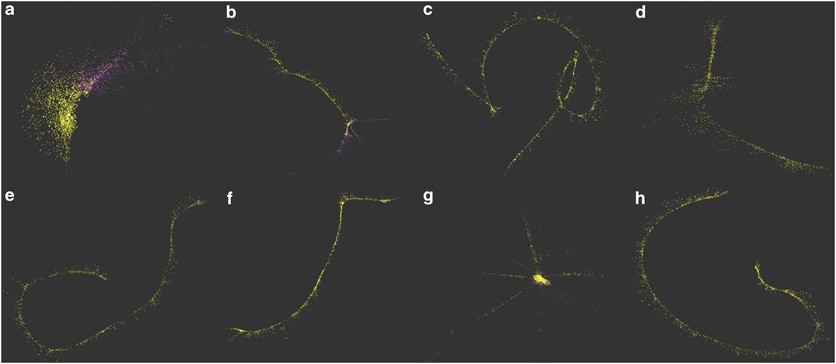

Metagenomic validation of de-novo assembled strain-specific mobile genetic elements. Total 8 transposons (a–h) were selected after reconstructed from de-novo assembly and graph-based clustering of genome (S. indicum B90A) and HCH dumpsite metagenomes. For each transposon; purple color dots represents the genomic reads of contigs (from graph-based clustering) assigned to a transposon and overlapping yellow reads represents the metagenomic validation with minimum sequence identity of 97%.
