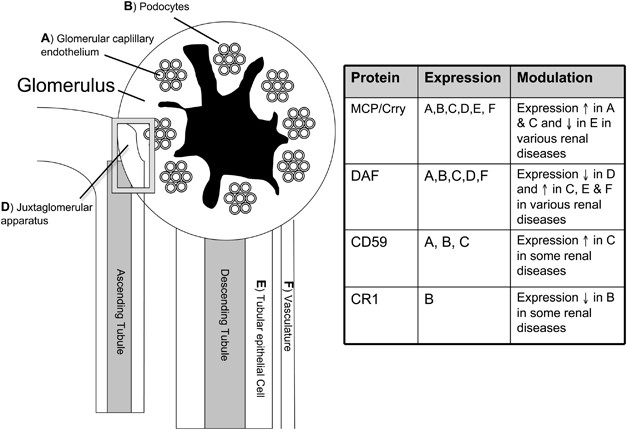

Figure 2
From: Dynamic control of the complement system by modulated expression of regulatory proteins
Expression of complement regulatory proteins in the kidney. Even within a single organ, different cell types will express a different repertoire of complement regulatory proteins. Within the kidney, the expression of different complement regulatory proteins is increased or decreased in various diseases. The localization to different structures within the kidney is also altered (see text for greater detail). Crry expression in the kidneys of rodents is similar to that of MCP in humans. We have categorized them as having the same pattern of expression, although this has not been rigorously examined.
