Figure 6 | Laboratory Investigation

Figure 6

From: Glutathione transferase kappa deficiency causes glomerular nephropathy without overt oxidative stress

Figure 6

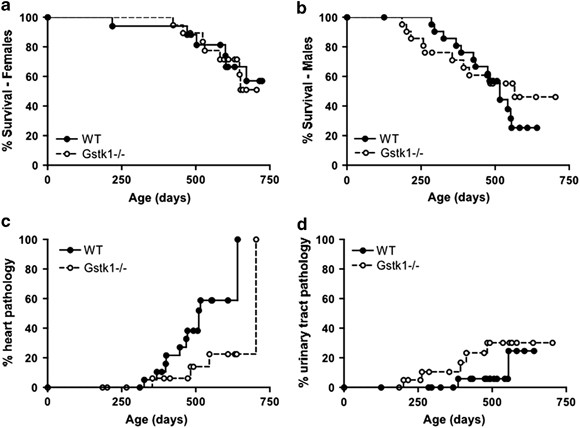

Kaplan–Meier event plots for WT and Gstk1−/− mice. The survival curve for all causes of death/killing are shown for females in panel (a) and males in panel (b). Panel (c) shows death from thrombus in the heart of male mice (P=0.028, log-rank test), and panel (d) shows death from kidney/urinary tract pathologies in male mice n=17 and 19 for female mice and n=22 and 21 for male mice. WT (•) and Gstk1−/− (○).
