Figure 2
From: DNA aptamer raised against advanced glycation end products inhibits melanoma growth in nude mice

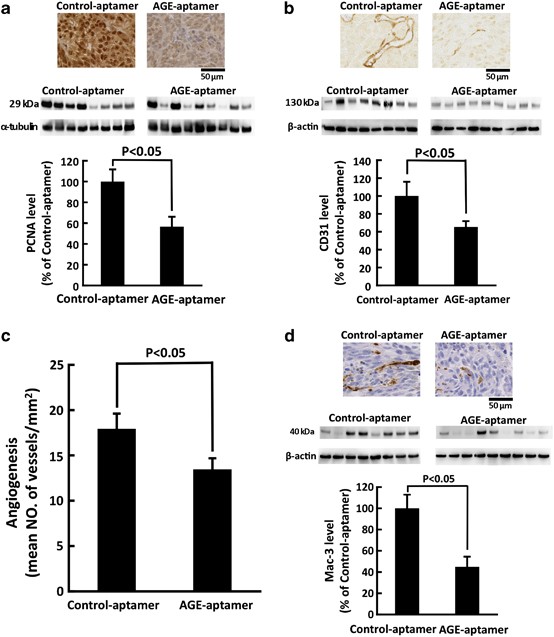

Effects of AGE-aptamer on expression levels of PCNA (a), CD31 (b), tumor-associated angiogenesis (c) and Mac-3 (d) in G361 melanoma. (a, b and d) Upper panel shows representative photographs of each immunostaining. Middle panel shows the bands of western blotting. Quantitative data are shown in lower panel. Data were normalized by the intensity of α-tubulin- (a) or β-actin-derived signals (b, d) and related to the value of Control-aptamer-treated mice. (c) Number of vessels in tumors was counted. Panel b had no counterstaining. β-actin bands in Figure 2b and Figure 3b are same because membrane was stripped and reprobed.
