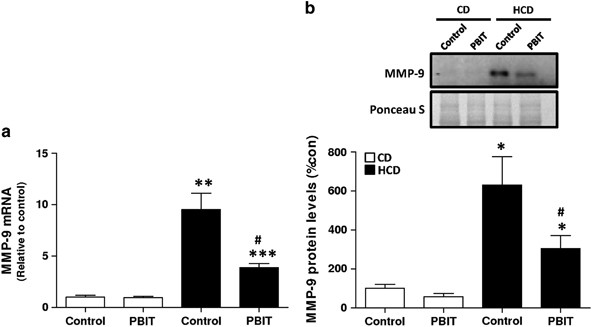

Figure 6
From: The role of iNOS in cholesterol-induced liver fibrosis
Effects of iNOS inhibition by PBIT during high-cholesterol diet (HCD) treatment on liver matrix metalloproteinase-9 (MMP-9) induction. Control and PBIT-treated mice fed with control diet (CD, white bars) or HCD (black bars) for 6 weeks. (a) Liver mRNA expression and (b) protein levels of MMP-9. Results are means±s.e.m. *P≤0.05, **P≤0.01, ***P≤0.001 vs control mice fed with CD; #P≤0.05 vs control mice fed with HCD.
