Figure 6

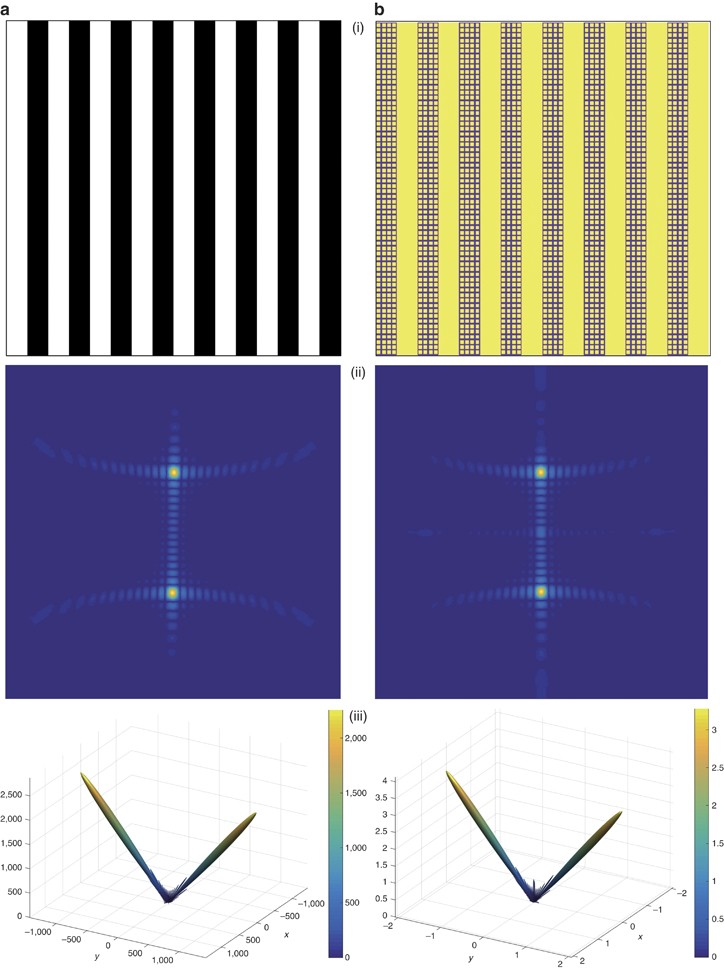

The far-field patterns of the metasurface encoded with coding sequence 010101…. (a) The theoretical calculation results by FFT. (b) The full-wave numerical simulation results. (i) Coding patterns. (ii) 2D polar far-field patterns. (iii) 3D far-field patterns.
