Figure 2: Aspergillus comparative map.
From: Sequencing of Aspergillus nidulans and comparative analysis with A. fumigatus and A. oryzae

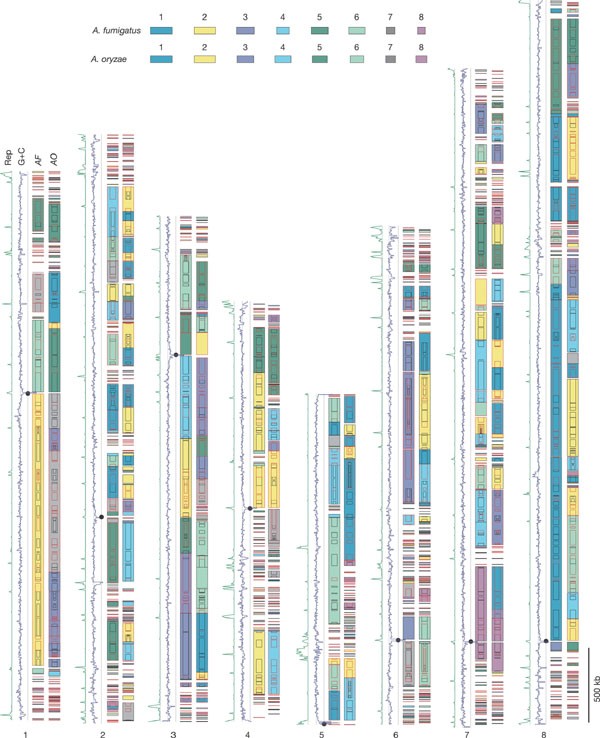

Conserved synteny between A. nidulans and A. oryzae and A. fumigatus. Syntenic regions are represented by two vertical columns of coloured blocks. The left and right columns represent syntenic blocks to A. fumigatus and A. oryzae, respectively, coloured by chromosome as indicated by the key. Nested blocks show synteny at finer resolutions. Blocks outlined in black are in opposite orientations in A. nidulans relative to those in red. Red blocks in black blocks (and vice versa) represent inversions. The green and purple lines display repeat density (Rep) and G + C content (G + C) in A. nidulans, both in 5-kb windows with increasing values to the left. Black circles represent centromeres.
