Extended Data Figure 1: Coordinate use of PDIM-mediated immune evasion and PGL-mediated recruitment by pathogenic mycobacteria.
From: Mycobacteria manipulate macrophage recruitment through coordinated use of membrane lipids

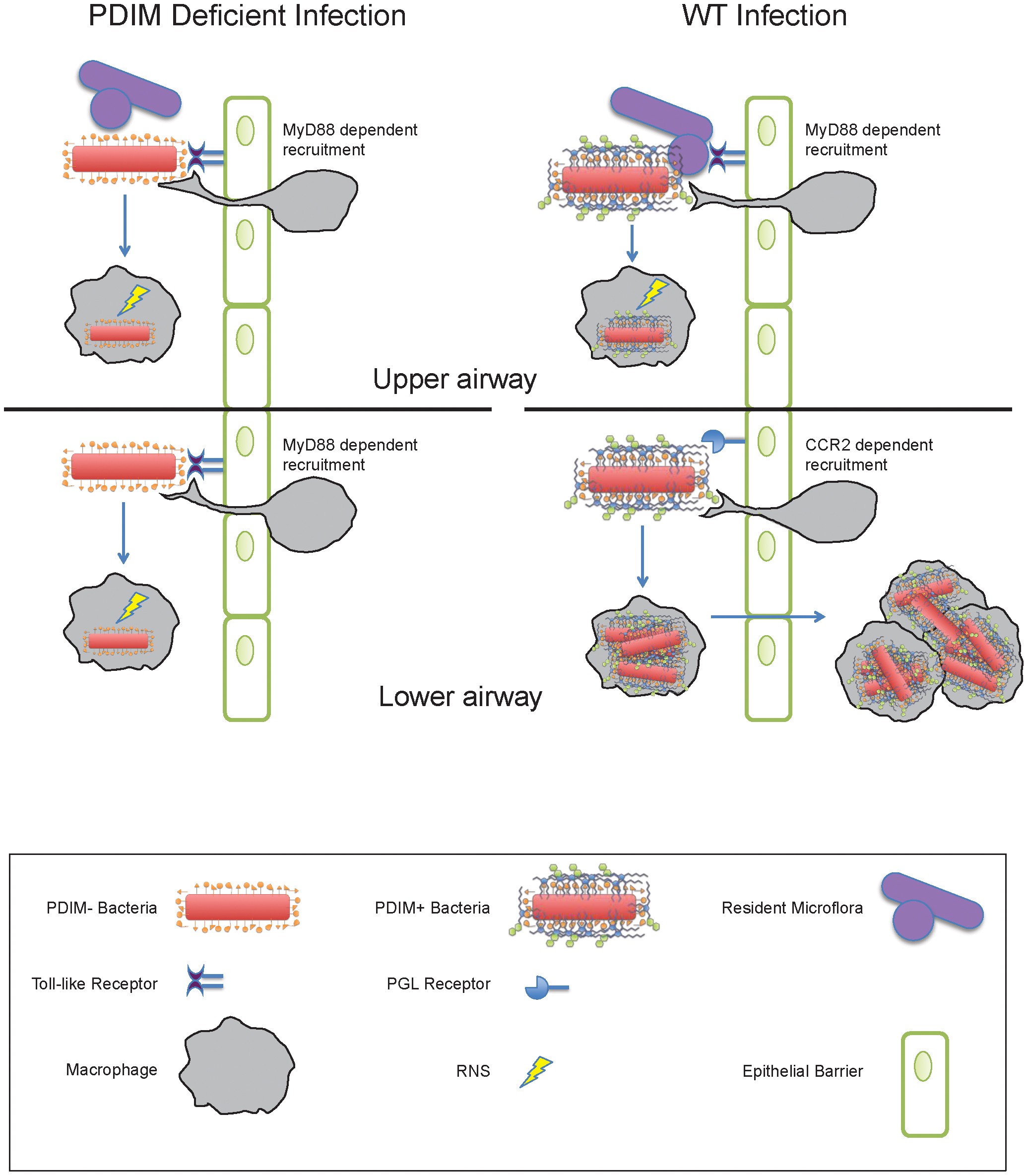

Models for infection with wild-type (WT) and PDIM-deficient mycobacteria are shown in the context of the relatively sterile lower airway versus the upper airway, with its higher levels of resident microflora and inhaled environmental organisms.
