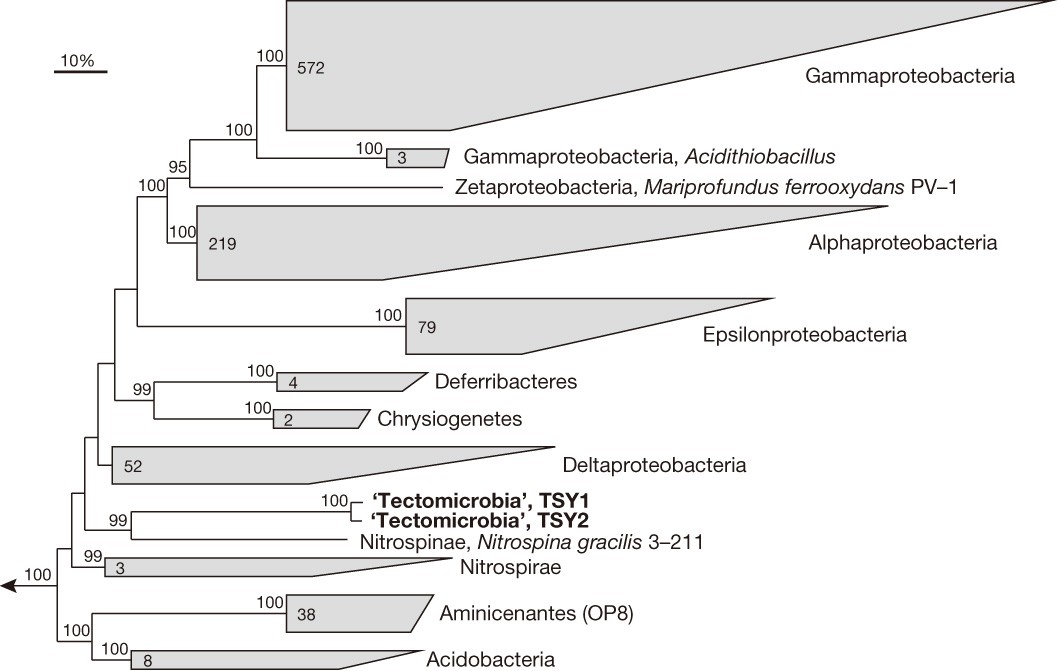

Figure 3: Phylogenetic inference of the ‘Tectomicrobia’ and affiliated phyla.
From: An environmental bacterial taxon with a large and distinct metabolic repertoire
RAxML inference of 991 taxa with 100 bootstrap iterations based on up to 38 marker genes. Sequences are collapsed on the phylum level and the number of collapsed sequences is shown for each clade. The two ‘Tectomicrobia’ variants TSY1 and TSY2 are highlighted in bold. Bootstrap support values of equal or greater than 70% are shown for each node. The scale bar represents 10% estimated sequence divergence. PV-1 and 3-11 are strain names; OP8 is the former name of the (then candidate) phylum Aminicenantes.
