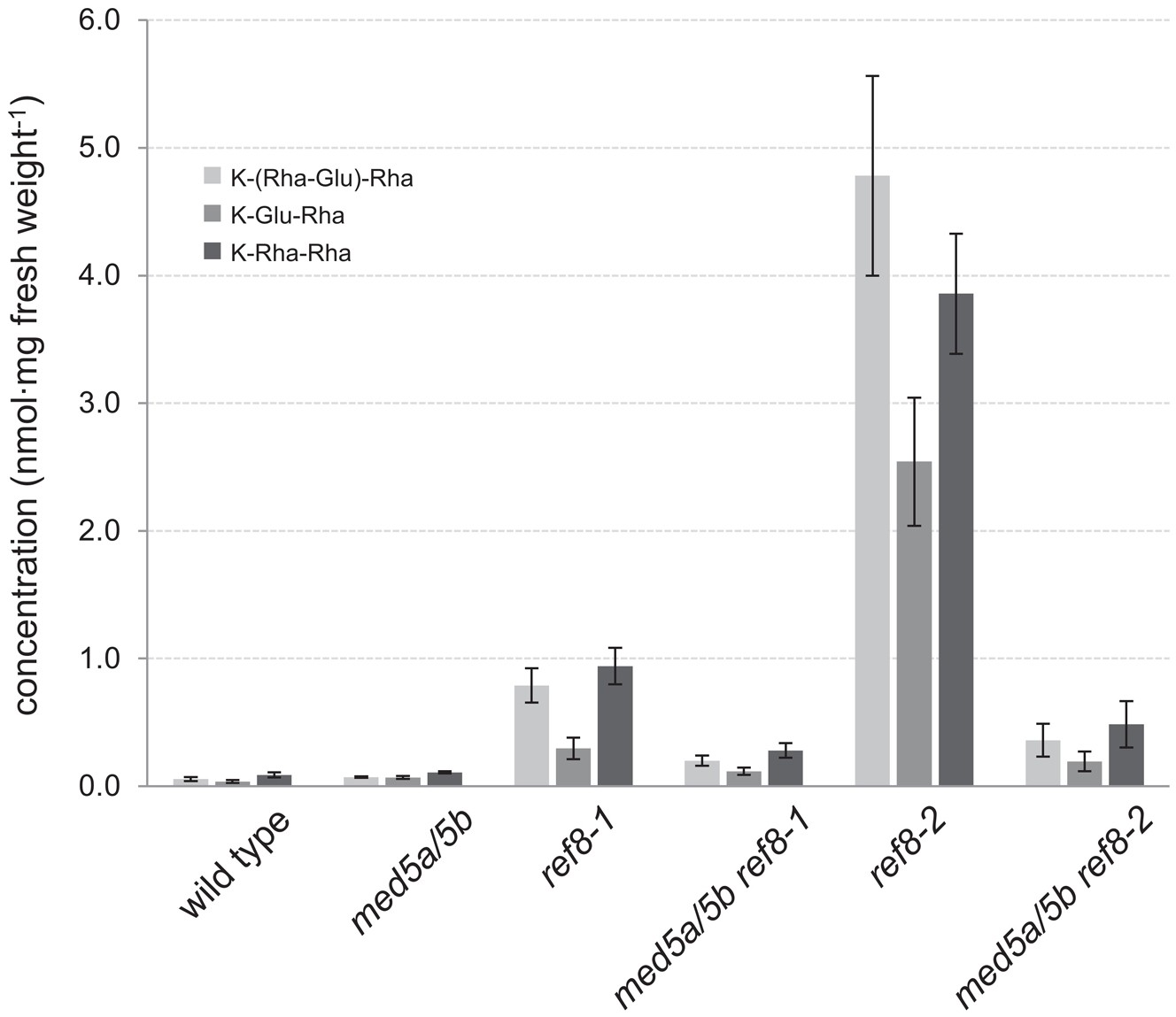

Extended Data Figure 2: Disruption of MED5a/5b alleviates the flavonoid hyperaccumulation of ref8 mutants.
From: Disruption of Mediator rescues the stunted growth of a lignin-deficient Arabidopsis mutant
Quantification of the three major flavonol glucosides in rosettes of 3-week-old plants of the indicated genotypes. In each case, data are derived from five single plants, except for ref8-2, where three groups of five, seven and seven plants each were combined into independent pools. Error bars indicate s.d. K-(Rha-Glu)-Rha, kaempferol 3-O-[6′′-O-(rhamnosyl) glucoside] 7-O-rhamnoside; K-Glu-Rha, kaempferol 3-O-glucoside 7-O-rhamnoside; K-Rha-Rha, kaempferol 3-O-rhamnoside 7-O-rhamnoside.
