Extended Data Figure 5: Lignin of med5a/5b ref8-1 mutant plants differs structurally from lignin of wild-type or med5a/5b mutant plants.
From: Disruption of Mediator rescues the stunted growth of a lignin-deficient Arabidopsis mutant

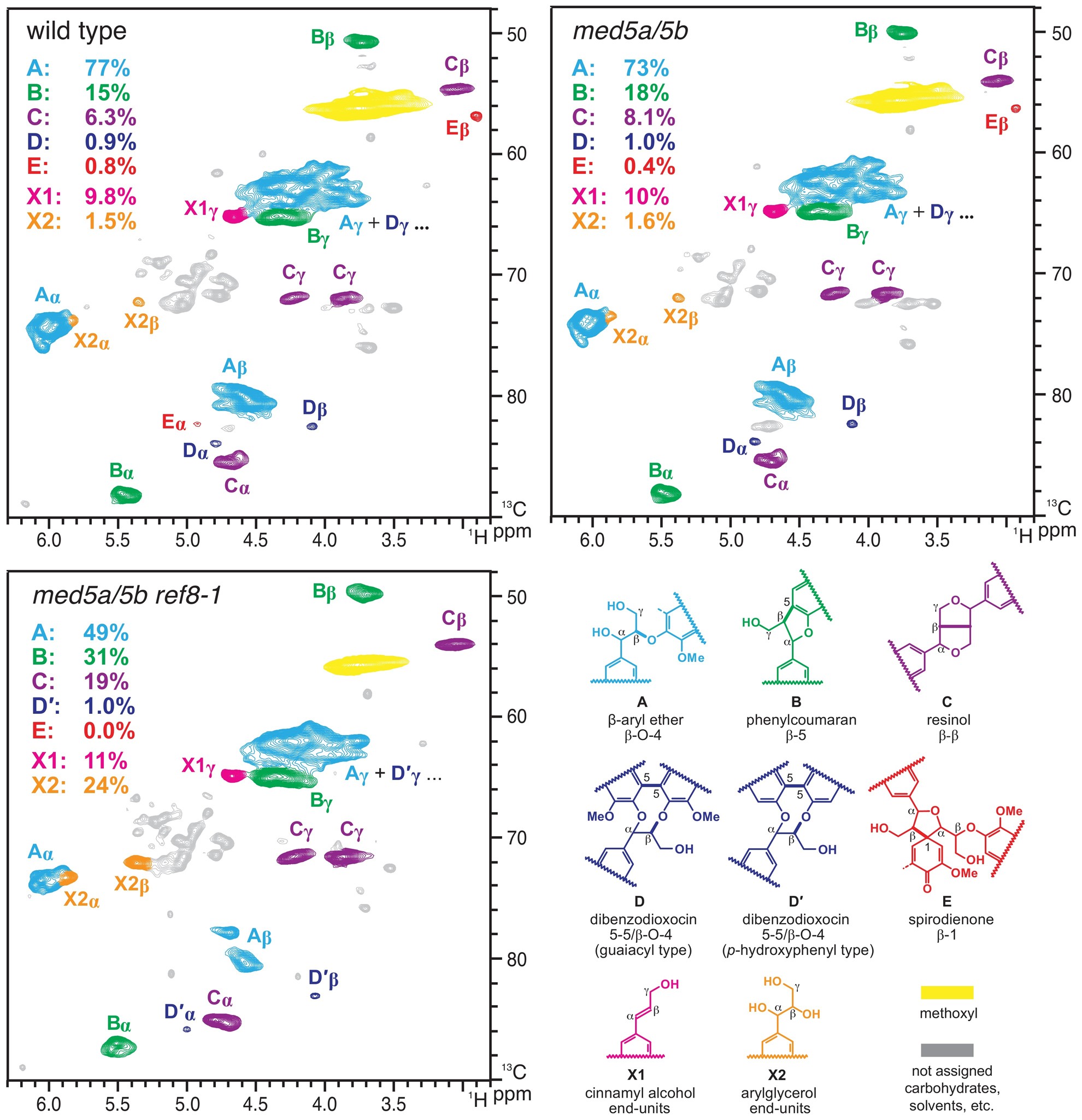

2D-NMR spectra of lignin from the indicated genotypes. The data shown are derived from a different region of the same spectra shown in Fig. 3. Colour-coded structures on right correspond to the major resonances in each spectrum.
