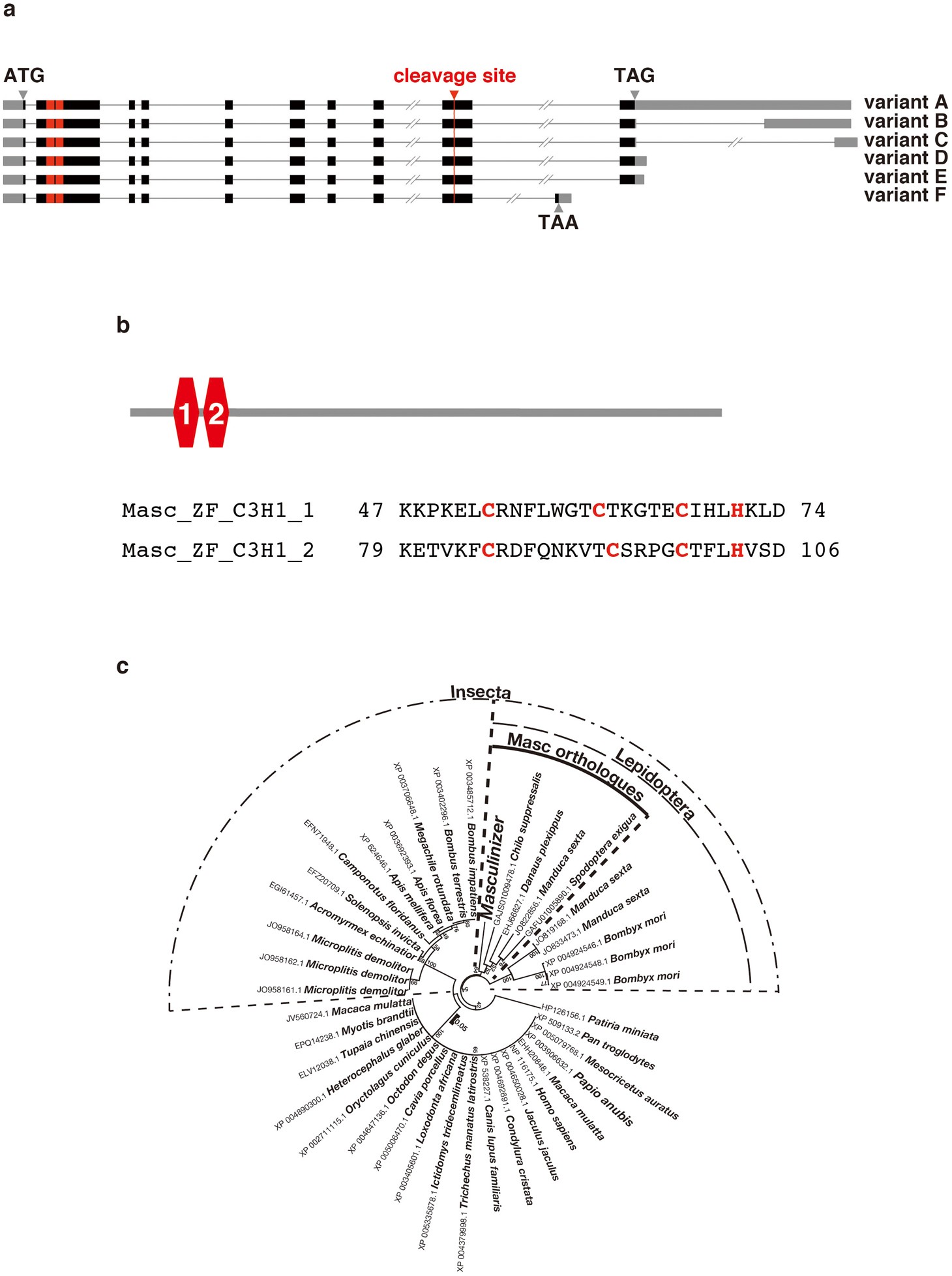

Extended Data Figure 5: Characterization of Masc.
From: A single female-specific piRNA is the primary determiner of sex in the silkworm
