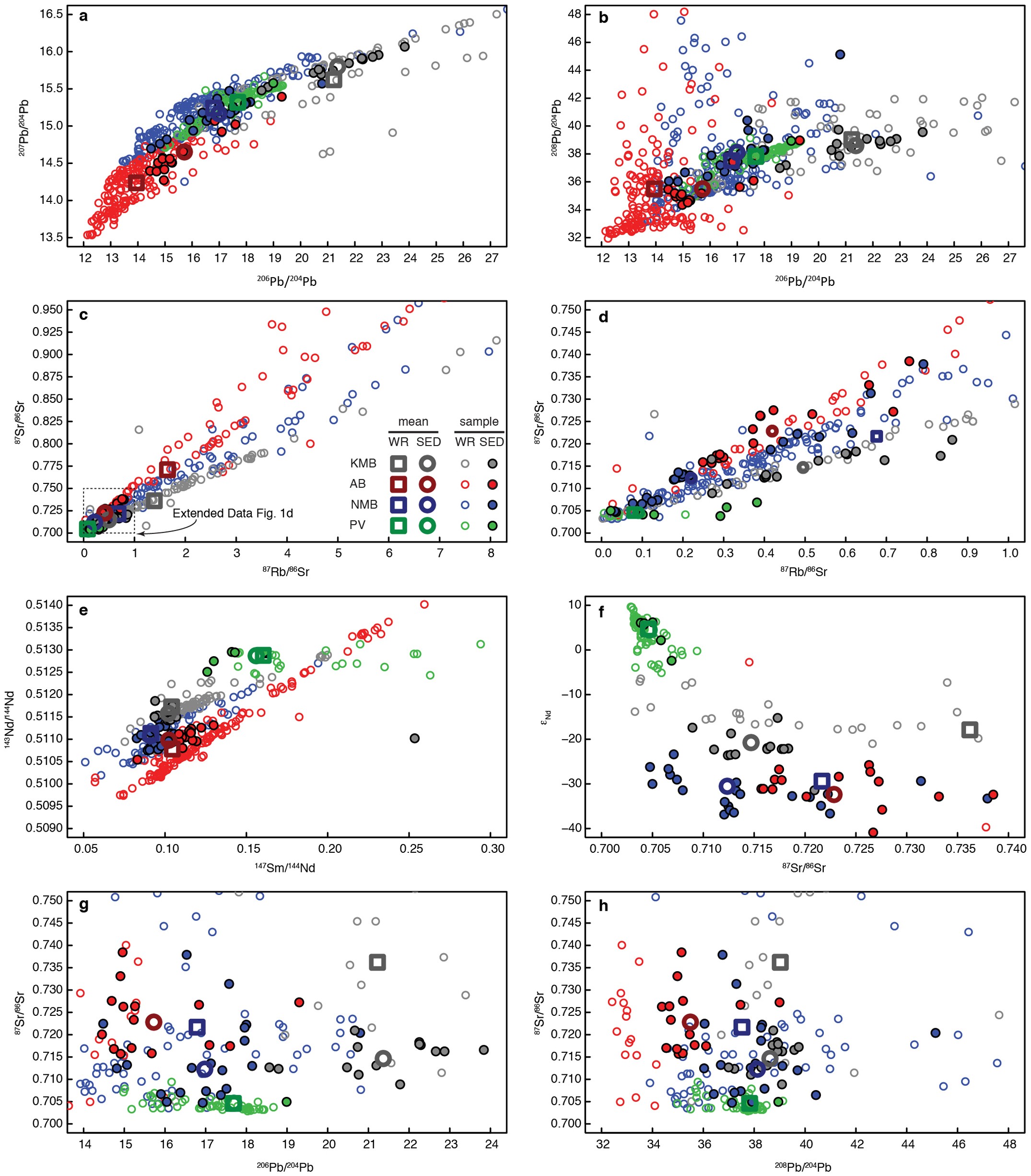

Extended Data Figure 1: Whole-rock and stream sediment silt Sr–Nd–Pb isotope composition for south Greenland bedrock terranes.
From: South Greenland ice-sheet collapse during Marine Isotope Stage 11
a, b, 207Pb/204Pb (a) and 208Pb/204Pb (b) versus 206Pb/204Pb. c, d, 87Sr/86Sr versus 87Rb/86Sr for the range of whole-rock (WR) and stream sediment (SED) compositions (c) and restricted to the range of stream sediment compositions (d). e, 143Nd/144Nd versus 147Sm/144Nd. f, εNd versus 87Sr/86Sr. g, h, 87Sr/86Sr versus 206Pb/204Pb (g) and 208Pb/204Pb (h). Whole-rock data for KMB, AB and NMB compiled in ref. 16; Palaeogene volcanic whole-rock and glacigenic shelf sediment data are presented in Supplementary Table 3. Mean values (large symbols) are concentration-weighted means for Rb–Sr and Sm–Nd isotopic compositions, whereas Pb isotope ratios are arithmetic means.
