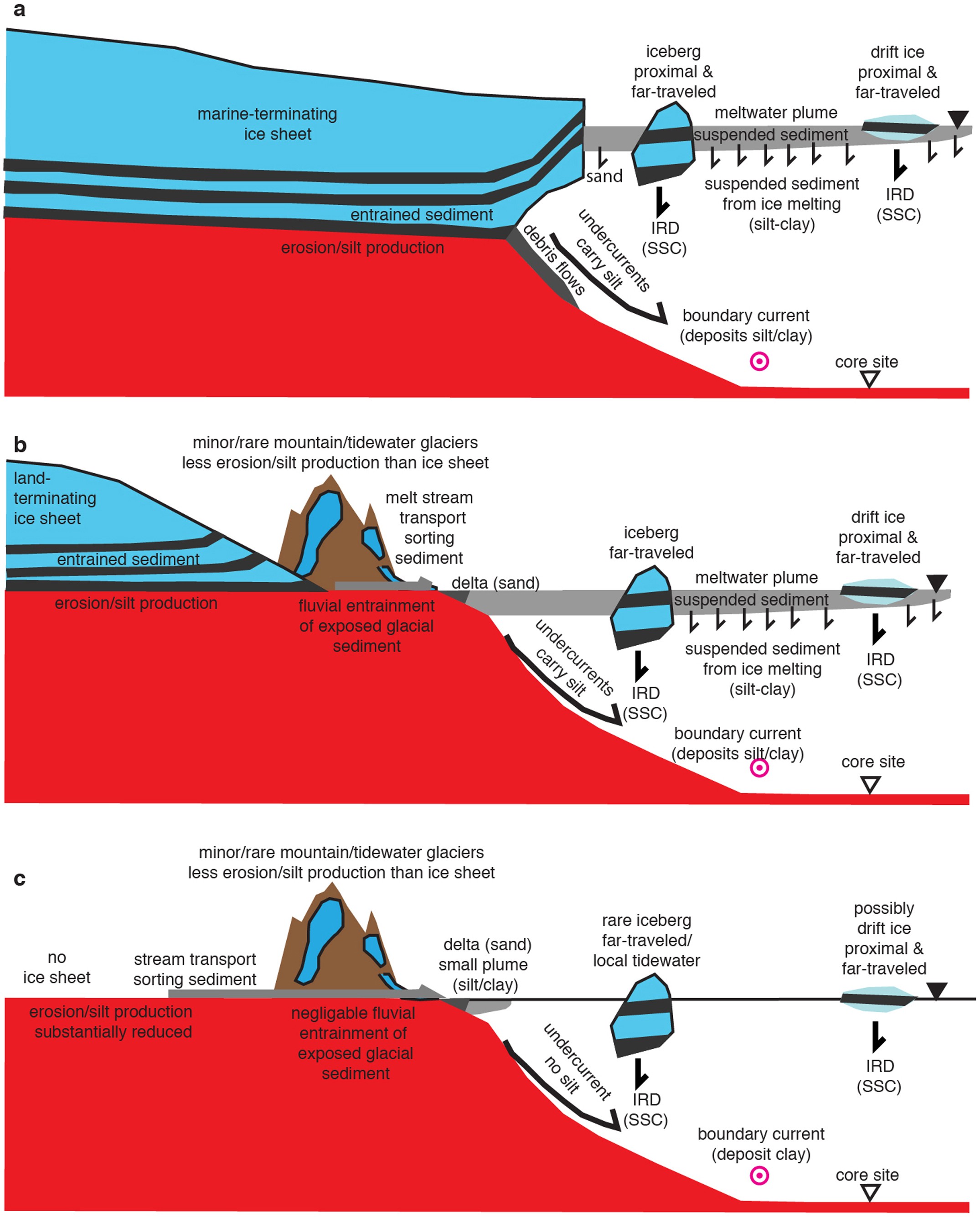

Extended Data Figure 6: Sediment sources and sedimentation processes.
From: South Greenland ice-sheet collapse during Marine Isotope Stage 11
Conceptual model of terrigenous silt sources and transport processes for a given bedrock terrane during full glaciation (a), glacial termination and deglaciation (b), and near-complete deglaciation (c). SSC, sand/silt/clay.
