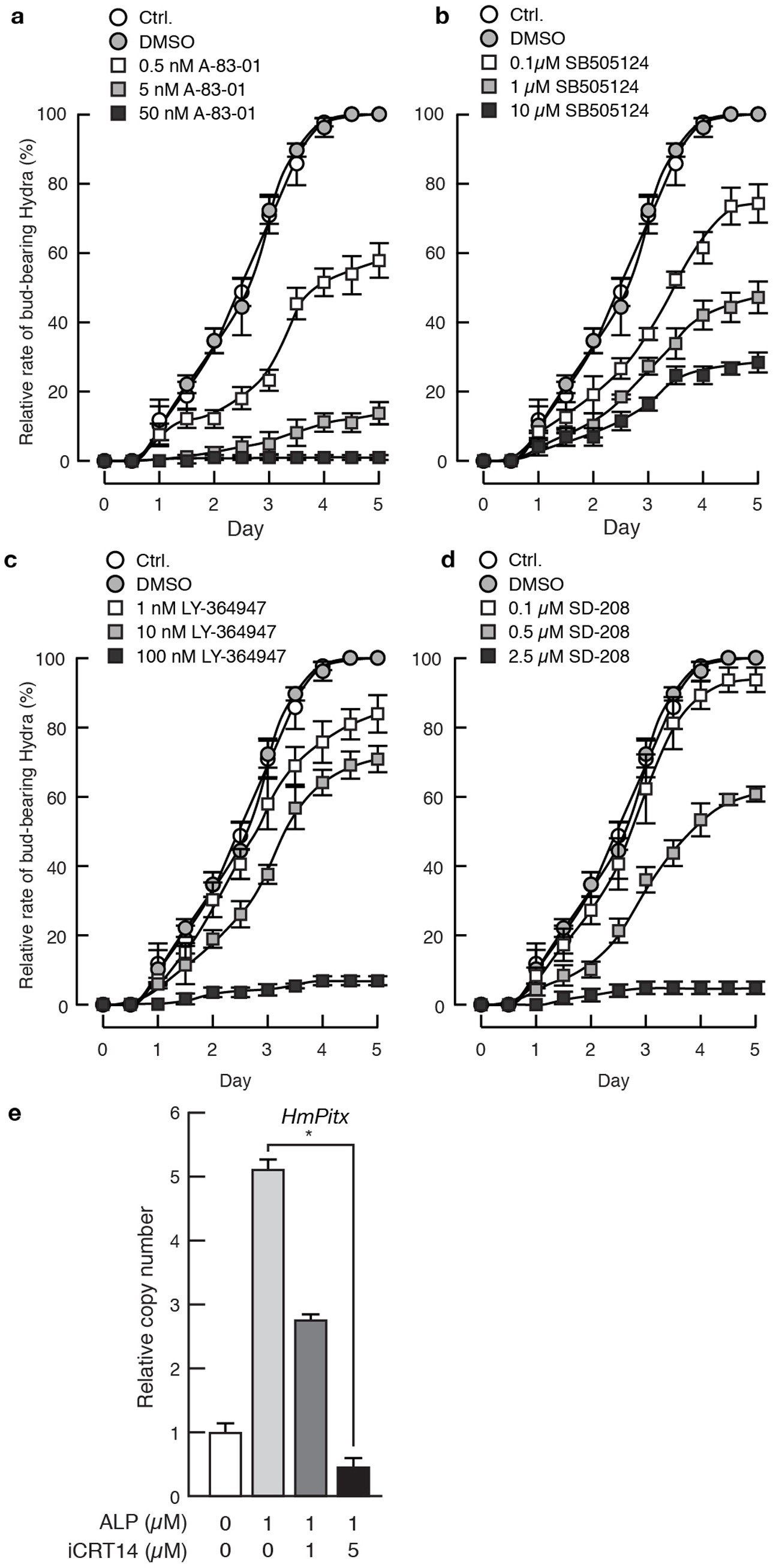

Extended Data Figure 9: Dose-dependent effect of inhibitors of Alk4/5/7 and of β-Catenin.
From: Nodal signalling determines biradial asymmetry in Hydra
a–d, Budless animals were incubated in the absence or presence of specific inhibitors of Alk4/5/7: A-83-01, SB-505124, LY-364947 and SD-208. The data are presented as the mean ± s.e.m. of four independent experiments. e, Hydra polyps treated with 1 µM ALP (GSK3 inhibitor) for 16 h with or without 1 or 5 µM iCRT14 (β-Catenin inhibitor). The relative expression level of Pitx was examined by qPCR. The data, which were normalized to the internal standard EF1α, are presented as the ratio of the fold increase compared with the non-treated control. The data are presented as the mean ± s.e.m. (triplicate determinations), with similar results obtained in three independent experiments. *, P < 0.05; one-sided t-test.
