Extended Data Figure 5: FITC-ISP in vivo and infinite horizon impaction.
From: Modulation of the proteoglycan receptor PTPσ promotes recovery after spinal cord injury

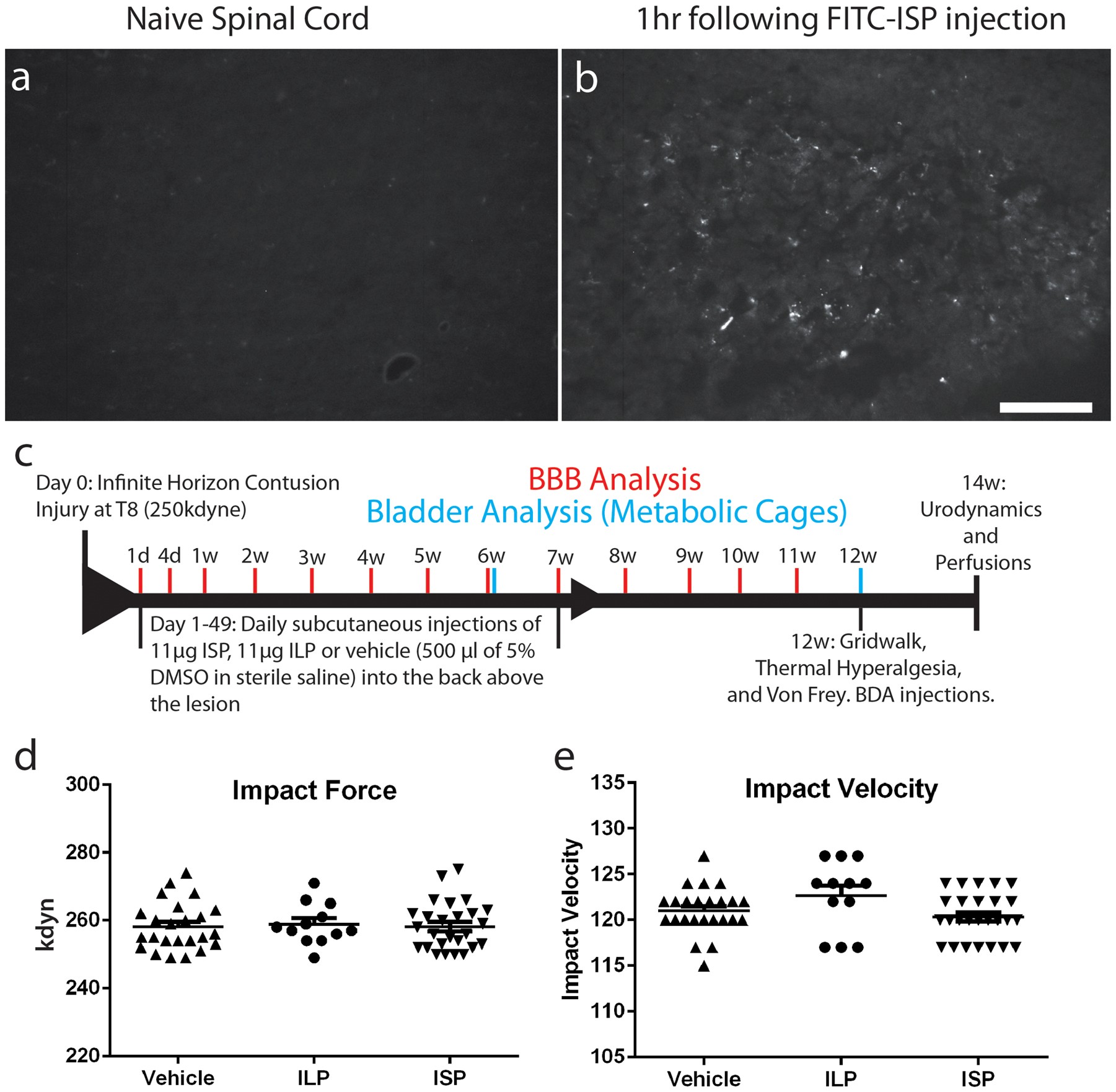

a, b, Spinal cord 1 h after subcutaneous injections of FITC-ISP or vehicle. Scale bar, 100 µM. c, Experimental design and timeline for in vivo experiment. d, e, The force and impaction velocity of all animals that received an infinite horizon contusive injury. All impactions are within 10% from the target force of 250 kdyn, with an average force of 258.2 for both ISP and vehicle.
