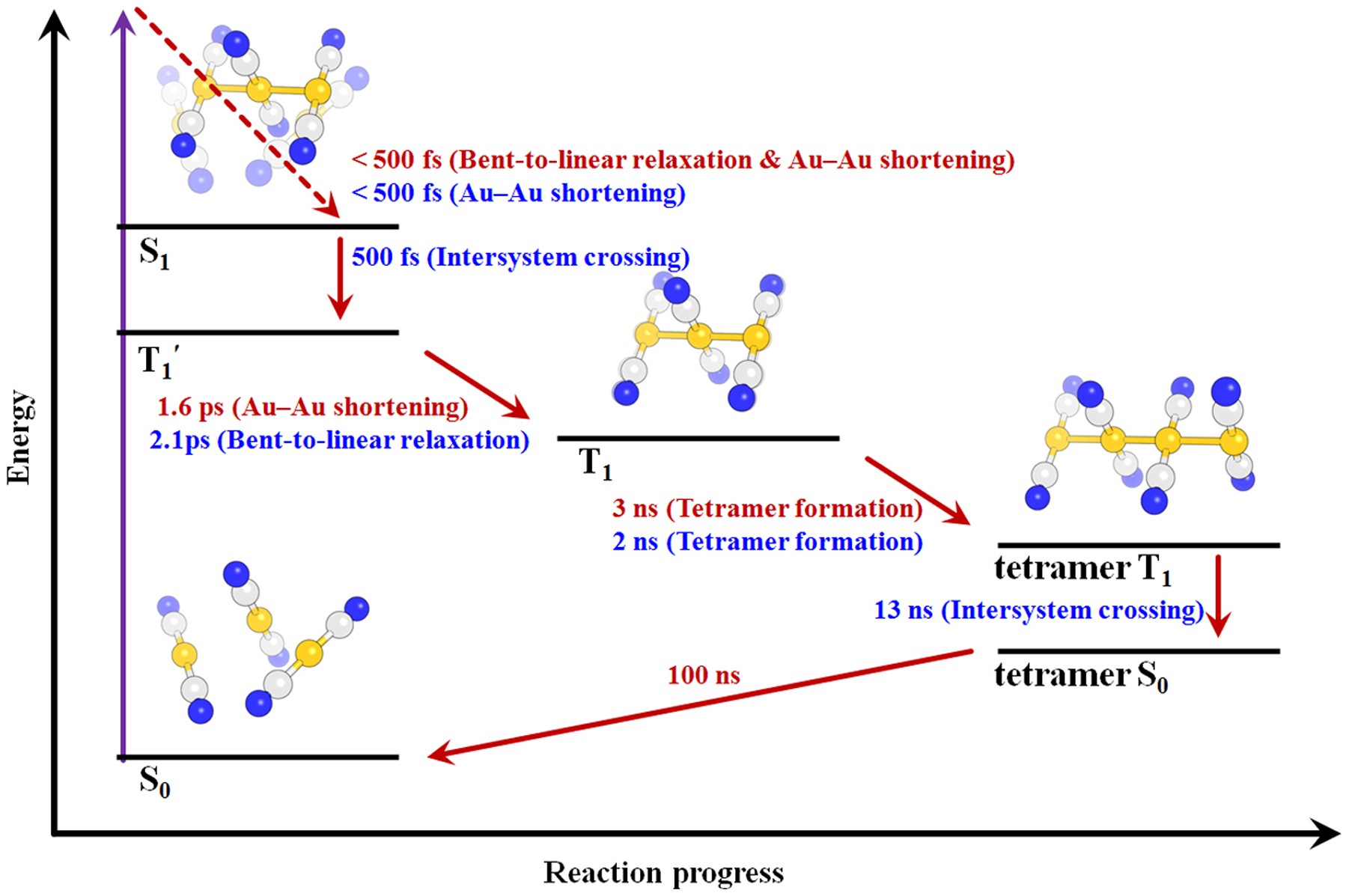

Extended Data Figure 9: Mechanism of photoinduced bond formation in [Au(CN)2–]3. Results from our TRXSS data (red) and the previous transient absorption experiment (blue) are shown together.
From: Direct observation of bond formation in solution with femtosecond X-ray scattering
![Extended Data Figure 9: Mechanism of photoinduced bond formation in [Au(CN)2–]3. Results from our TRXSS data (red) and the previous transient absorption experiment (blue) are shown together.](http://media.springernature.com/full/springer-static/image/art%3A10.1038%2Fnature14163/MediaObjects/41586_2015_Article_BFnature14163_Fig13_ESM.jpg?as=webp)
Our findings are in good agreement with the reaction mechanism proposed in the transient absorption study, except for the structural assignments of the early kinetics. Considering that TRXSS is sensitive only to the processes accompanying structural change, the intersystem crossing processes on ∼500 fs and 13 ns timescales, which were not observed in the TRXSS measurement, are likely to involve no structural change.
