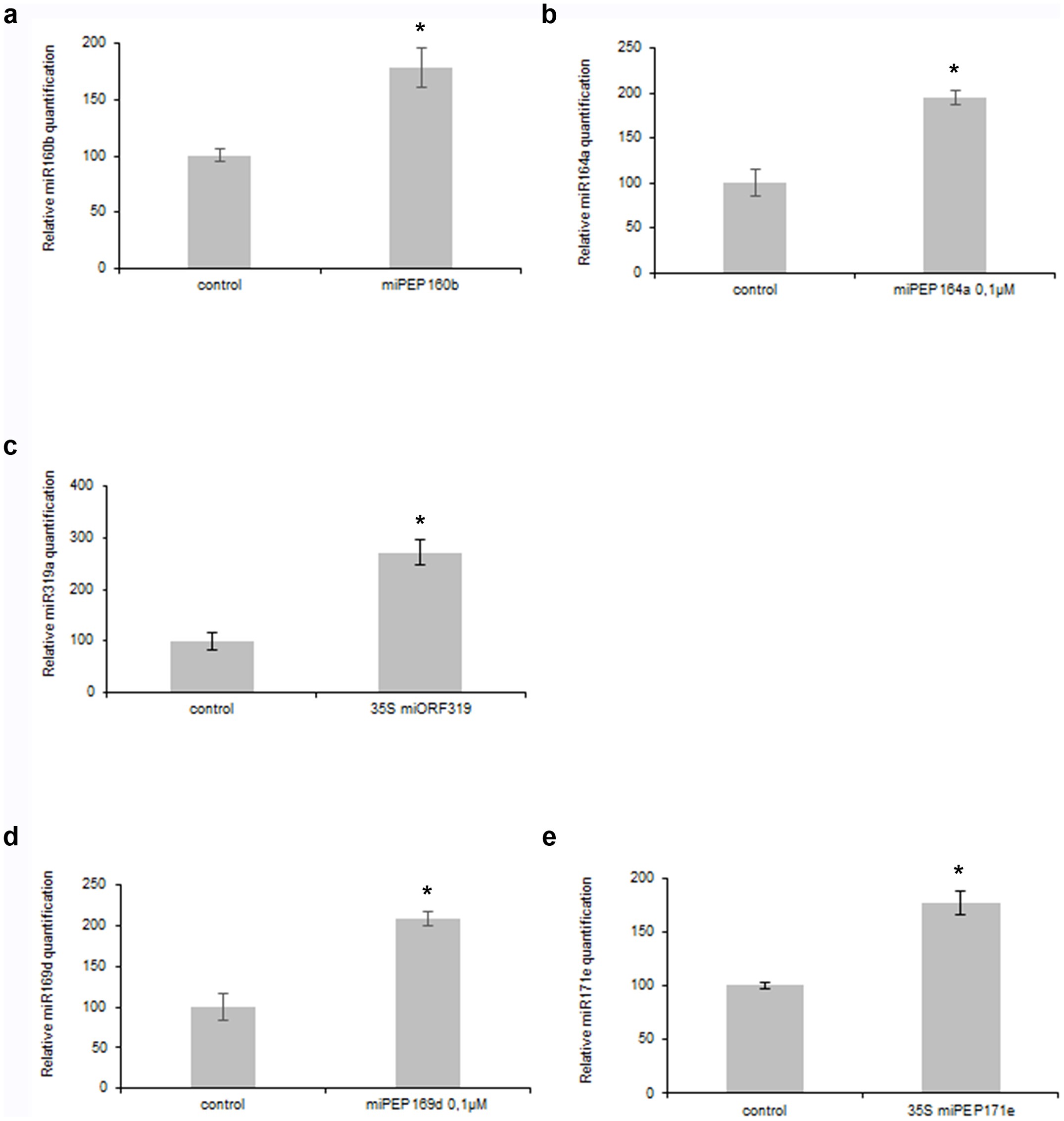

Extended Data Figure 7: Effect of various miPEPs from Arabidopsis thaliana and Medicago truncatula on the expression of their corresponding miRNA.
From: Primary transcripts of microRNAs encode regulatory peptides
a–c, miPEPs from A. thaliana. a, Expression of miR160b in response to overexpression of miPEP160b. b, Expression of miR164a in response to treatment with 0.1 µM of miPEP164a. c, Expression of miR319a in response to overexpression of miPEP319a. d–e, miPEPs from M. truncatula. d, Expression of miR169d in response to treatment with 0.1 µM of miPEP169d. e, Expression of miR171e in response to overexpression of miPEP171e. Error bars represent s.e.m., asterisks indicate a significant difference between the treatment and the control according to a Kruskal–Wallis test (n = 10 independent roots or tobacco leaves, P < 0.05).
