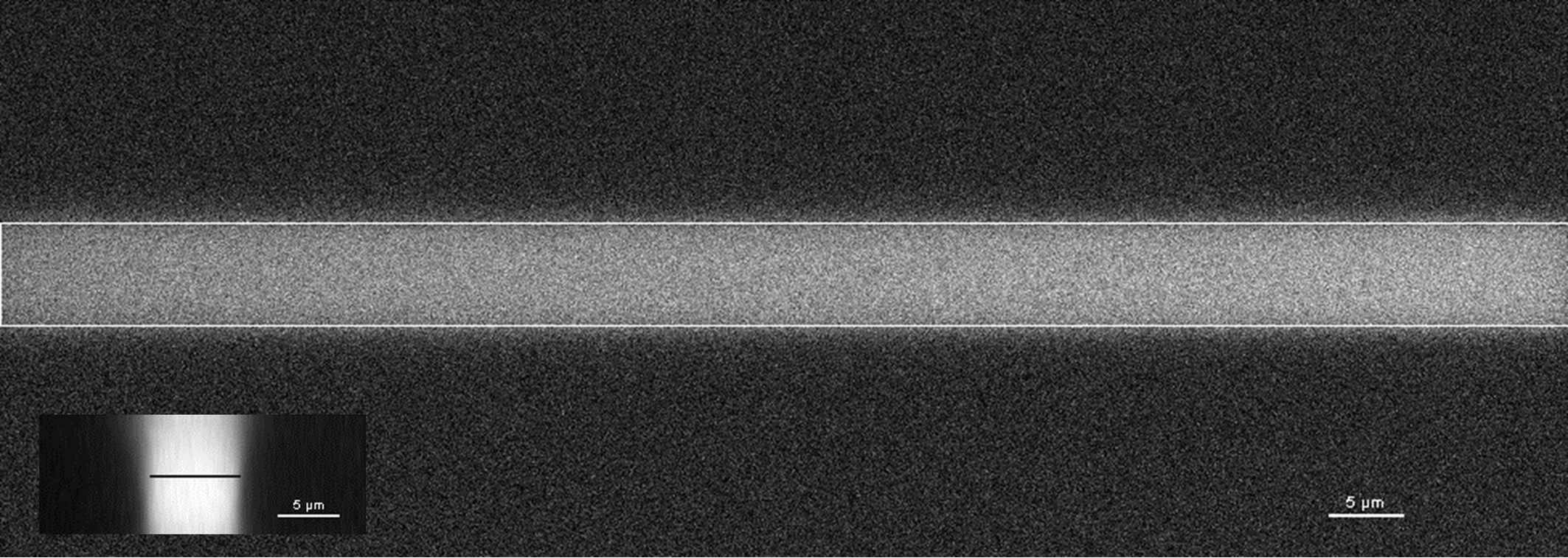

Extended Data Figure 9: UV light was restricted to the drawn ROI.
From: Mitochondrial reticulum for cellular energy distribution in muscle
Difference XY image of a uniformly blue fluorescent slide before and after exposure to UV light in the drawn ROI (white outline). Inset: YZ view shows that the UV light was largely maintained to the ROI drawn (black line). Scale bars, 5 μm. Images are representative of 3 experiments.
