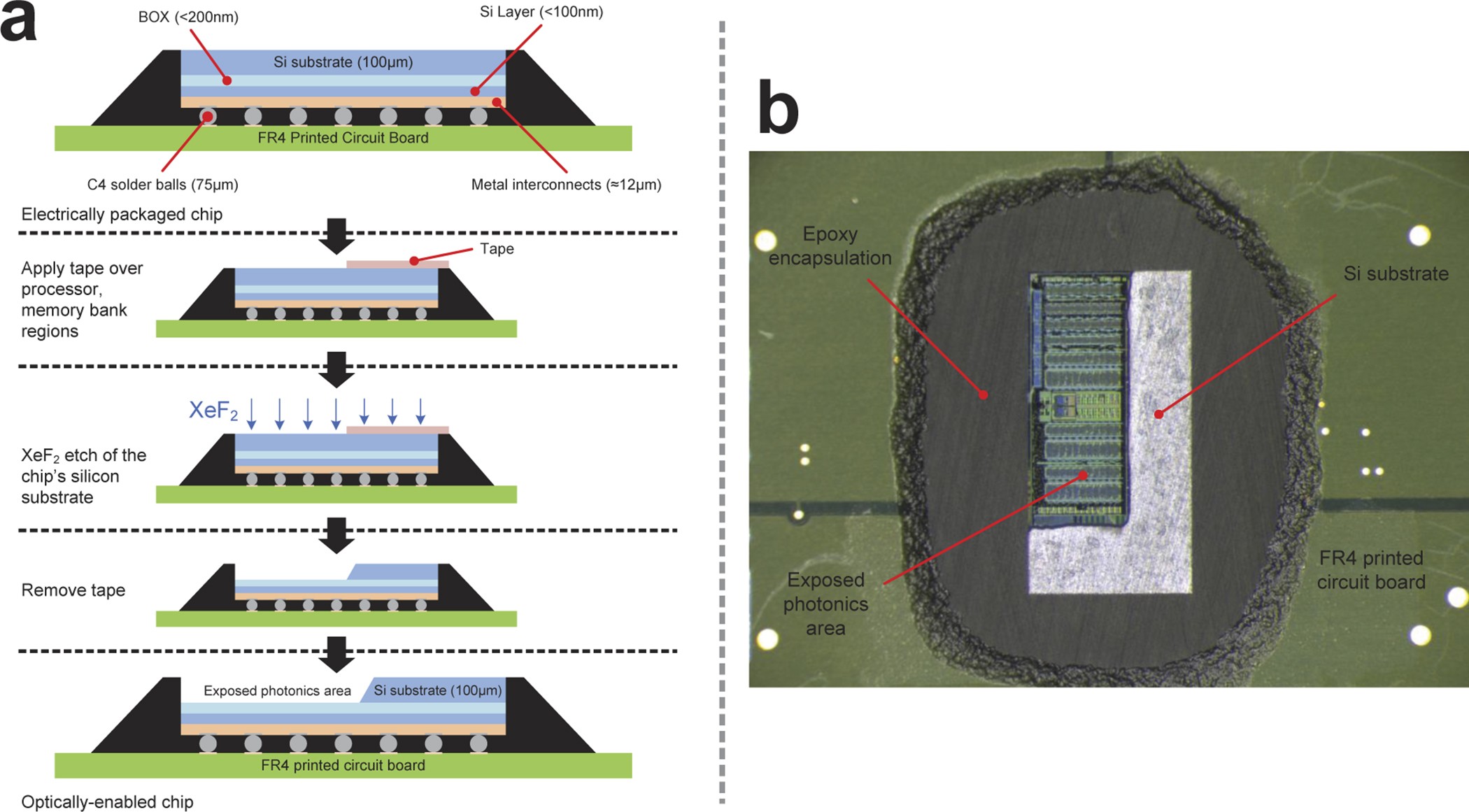

Extended Data Figure 2: Selective substrate removal.
From: Single-chip microprocessor that communicates directly using light
a, Selective substrate removal steps for the flip-chip packaged chip, using tape as a coarse mask for defining areas that retain the substrate. BOX, buried oxide. b, Photo of a selective-substrate-removed fully electrically packaged electronic–photonic processor chip.
