Extended Data Figure 10: TCJ bipolarity aligns with mechanical stress.
From: Epithelial tricellular junctions act as interphase cell shape sensors to orient mitosis

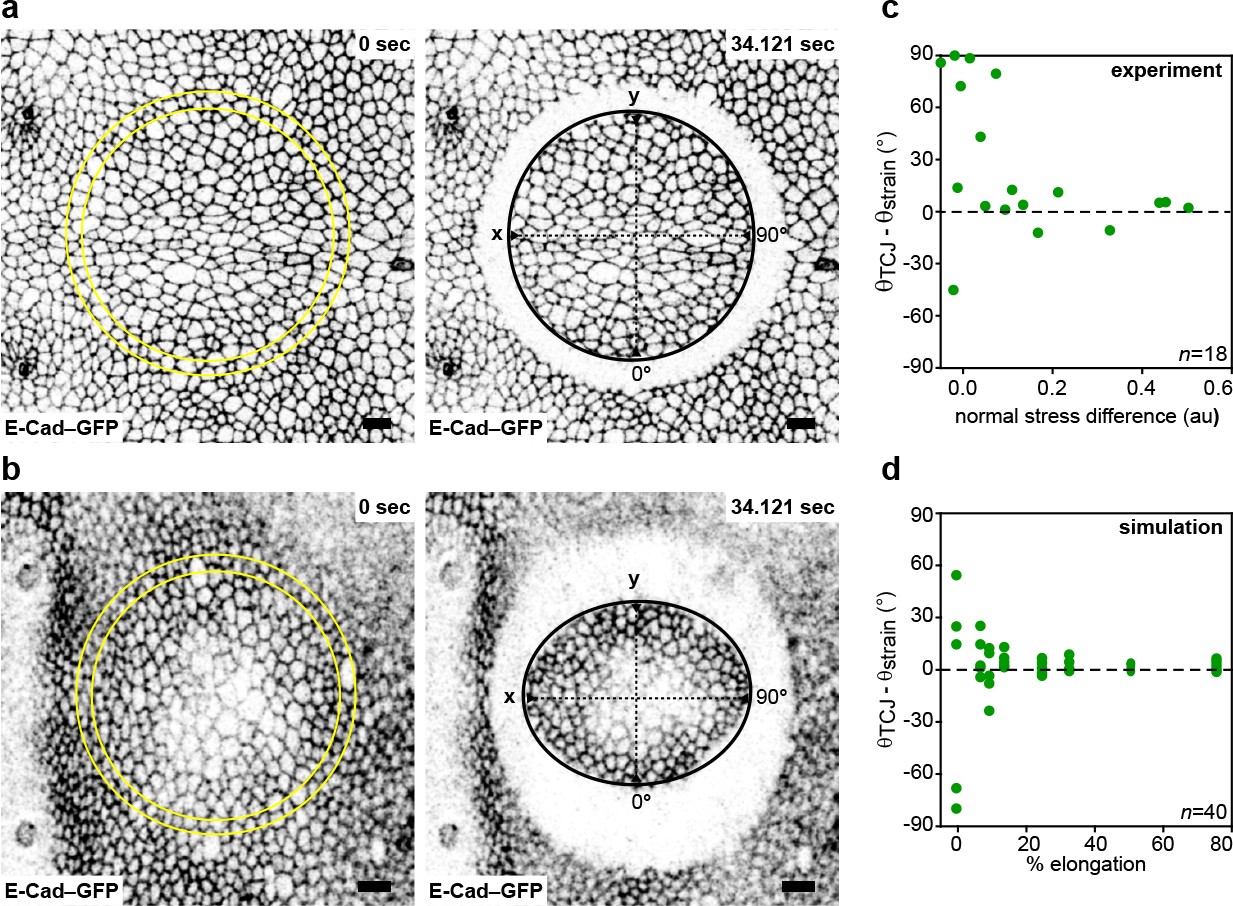

a, b, Images of the scutellum tissue before and after ablation (ablated region in yellow) in early and late pupa characterized by small isotropic stress (a) and high anisotropic stress (b). Tissue stress was estimated by determining the initial recoiled velocity upon circular ablation in the x and y directions53. First and last images of two time-lapse movies out of the 18 quantified in c are shown. Scale bars, 10 μm. c, Plot of the difference between the orientation of TCJ bipolarity
(
) and principal strain axis (
) as a function of normal stress differences (
, note that
) as estimated up to a prefactor by circular laser ablation. Number of ablations (n) analysed is indicated. The same plot is shown in Fig. 4d. d, Plot of the difference between the orientation of TCJ bipolarity (
) and the orientation of strain (
