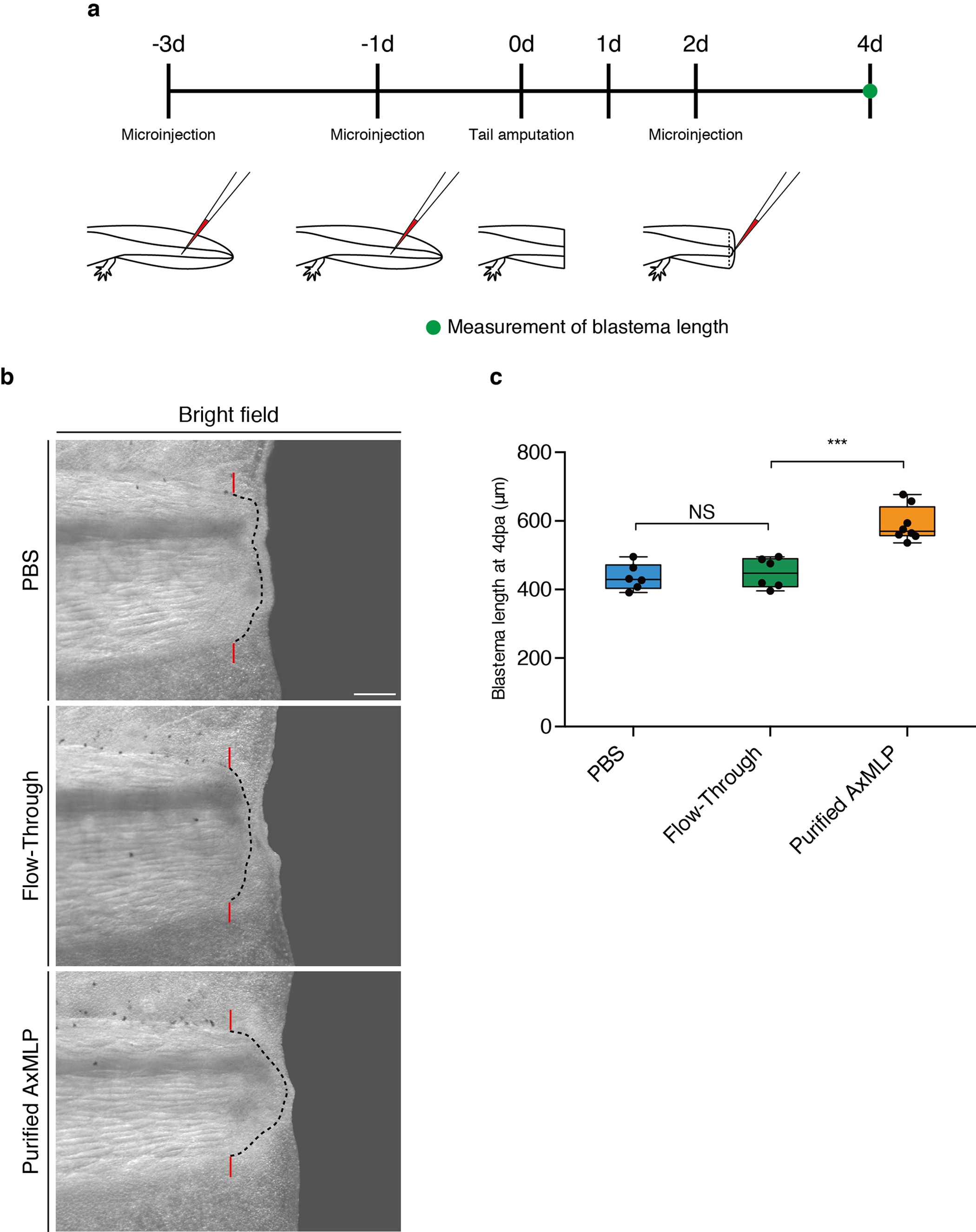

Extended Data Figure 10: Exogenous AxMLP accelerates normal tail regeneration.
From: MARCKS-like protein is an initiating molecule in axolotl appendage regeneration
a, Schematic illustration of the protein injection into axolotl tail and blastema. b, Bright-field images of the protein-injected tails at 4 dpa. c, Blastema length at 4 dpa (n = 6: PBS, FT; n = 8: AxMLP, biological replicates; centre values as median; points represent each sample). The blastema from purified AxMLP injected tails significantly increased the regenerate length. Scale bar, 500 μm. Red bars indicate amputation planes; dashed lines delineate the shape of the mesenchymal blastema. NS, not significant; ***P < 0.0005 with Student’s t-test.
