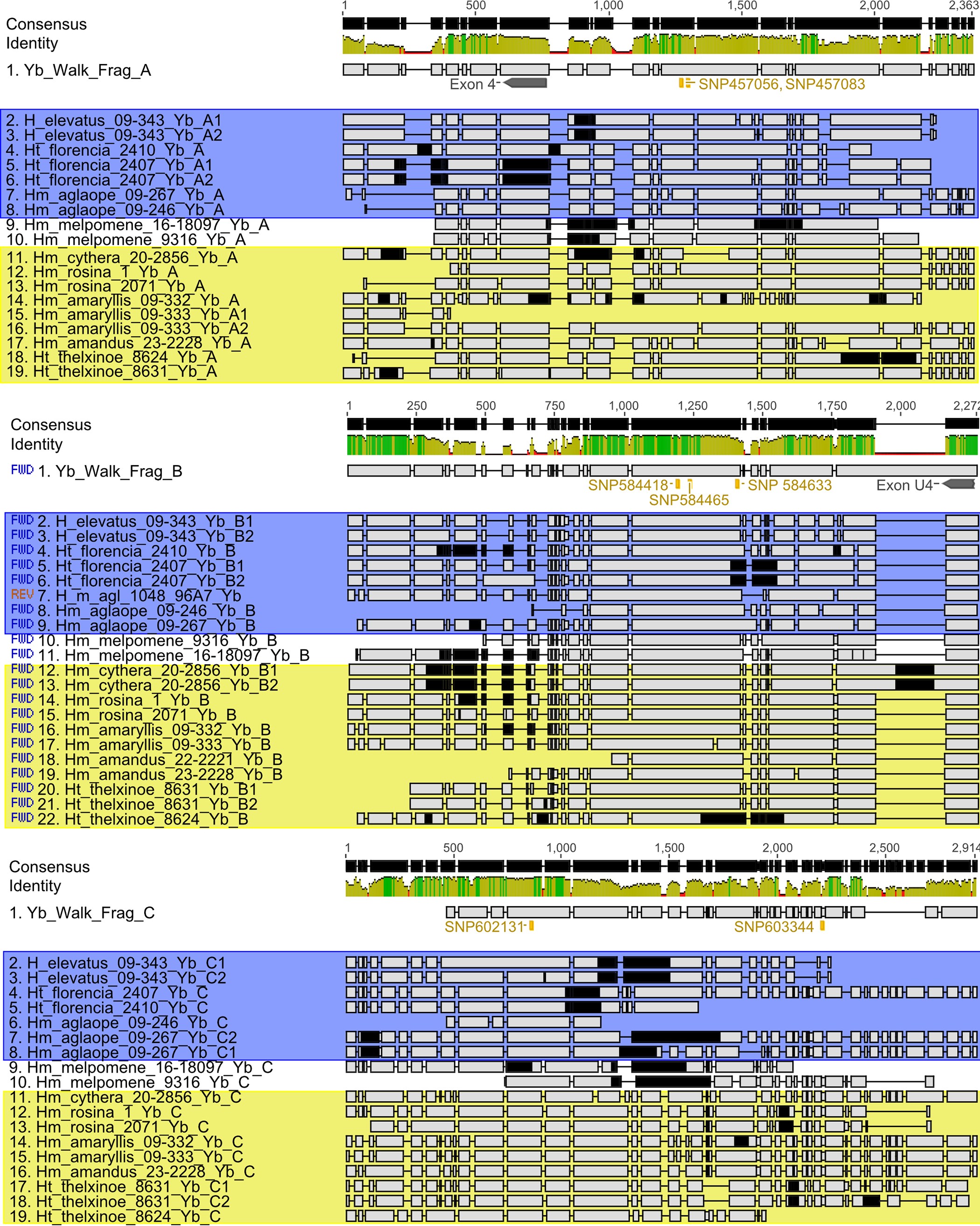

Extended Data Figure 2: Alignments of de novo assembled fragments containing the top associated SNPs from H. melpomene and related taxa short-read data.
From: The gene cortex controls mimicry and crypsis in butterflies and moths
Identified indels do not show stronger associations with phenotype that those seen at SNPs (as shown in Extended Data Table 2), although some near-perfect associations are seen in fragment C. Black regions, missing data; yellow boxes, individuals with a yellow hindwing bar; blue boxes, individuals with a yellow forewing band.
