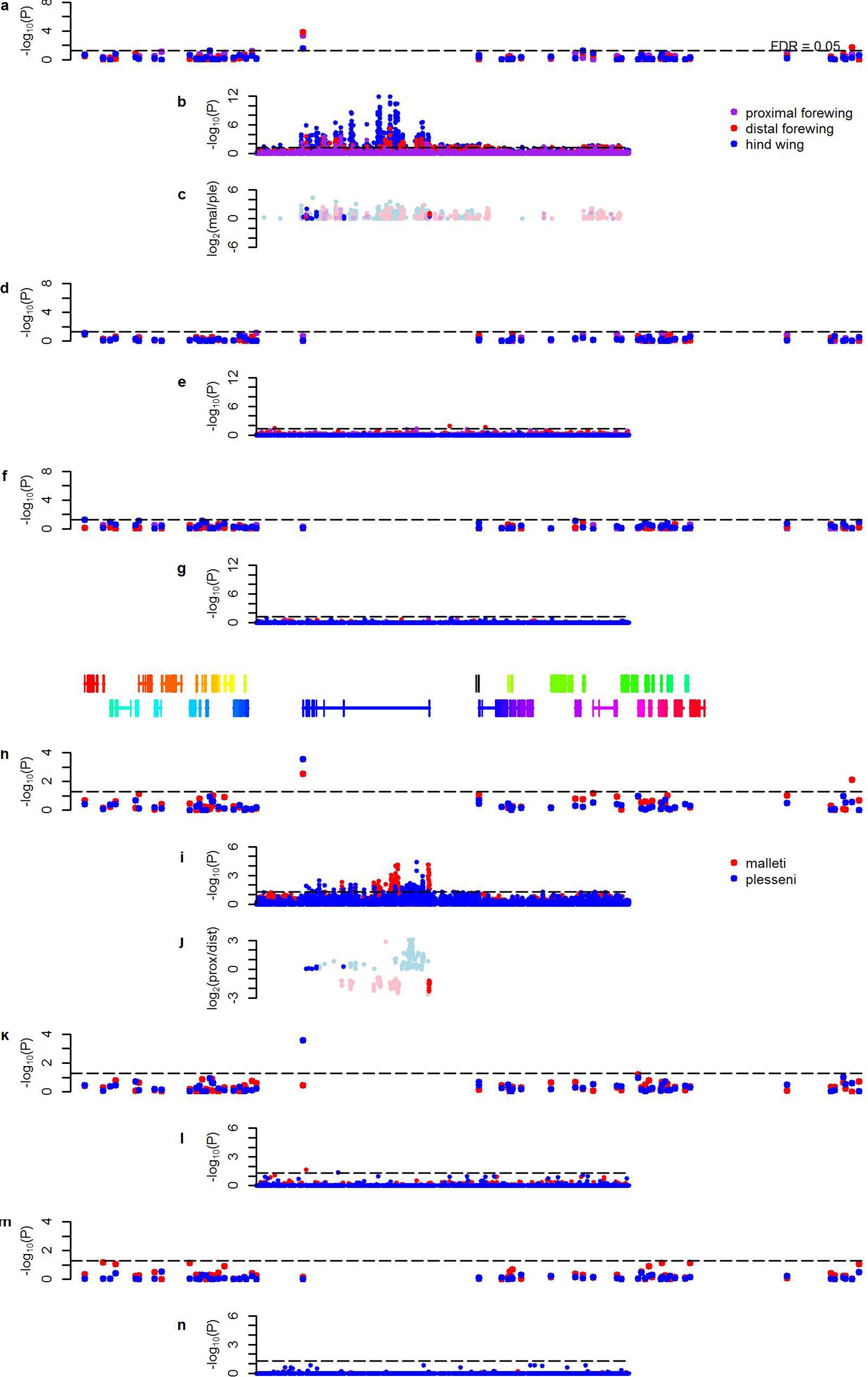

Extended Data Figure 4: Expression array results for additional stages.
From: The gene cortex controls mimicry and crypsis in butterflies and moths
Array results are related to Fig. 4. a–g, Comparisons between races (H. melpomene plesseni and H. melpomene malleti) for three wing regions. h–n, Comparisons between proximal and distal forewing regions for each race. Significance values (−log10P) are shown separately for genes in the HmYb region from the gene array (a, d, f, h, k, m) and for the HmYb tiling array (b, e, g, i, l, n) for day 1 (a, b, h, i), day 5 (d, e, k, l) and day 7 (f, g, m, n) after pupation. The level of expression difference (log fold change) for tiling probes showing significant differences (P ≤ 0.05) is shown for day 1 (c and j) with probes in known cortex exons shown in dark colours and probes elsewhere shown as pale colours. P values are based on FDR-adjusted t-statistics.
