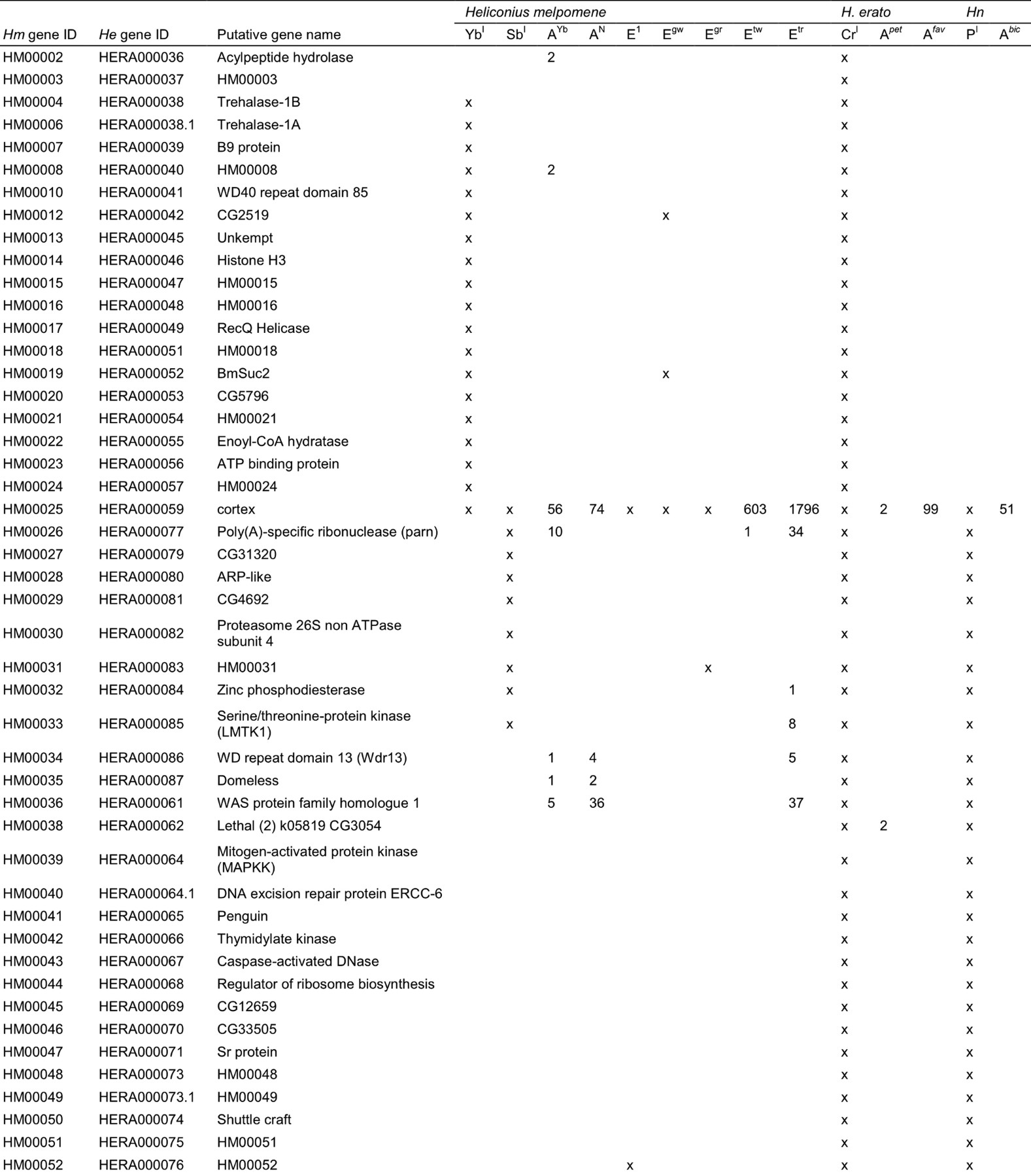

Extended Data Table 1 Genes in the Yb region and evidence for wing patterning control in Heliconius
From: The gene cortex controls mimicry and crypsis in butterflies and moths
- Abic, number of above background SNPs associated with the H. numata (Hn) bicoloratus phenotype in this study. Afav, number of SNPs fixed for the alternative allele in H. erato favorinus. AN, number of above background SNPs associated with the forewing yellow band in this study. Apet, number of SNPs fixed for the alternative allele in H. erato demophoon. AYb, number of above background SNPs associated with the hindwing yellow bar in this study. CrI, within the previously mapped HeCr interval11. PI, within the previously mapped P interval13. E1, detected as differentially expressed between H. melpomene aglaope and amaryllis from RNA-seq data in this study (Supplementary Information). Egr, detected as differentially expressed between H. melpomene plesseni and malleti in in the gene array in this study. Egw, detected as differentially expressed between forewing regions in the gene array in this study. Etr, numbers of probes showing differential expression between H. melpomene plesseni and malleti in in the tiling array in this study. Etw, numbers of probes showing differential expression between forewing regions in the tilling array in this study. SbI, within the previously mapped Sb interval12. YbI, within the previously mapped Yb interval12. Sb controls a white–yellow hindwing margin and is not investigated in this study. The N locus has not been fine-mapped previously.
