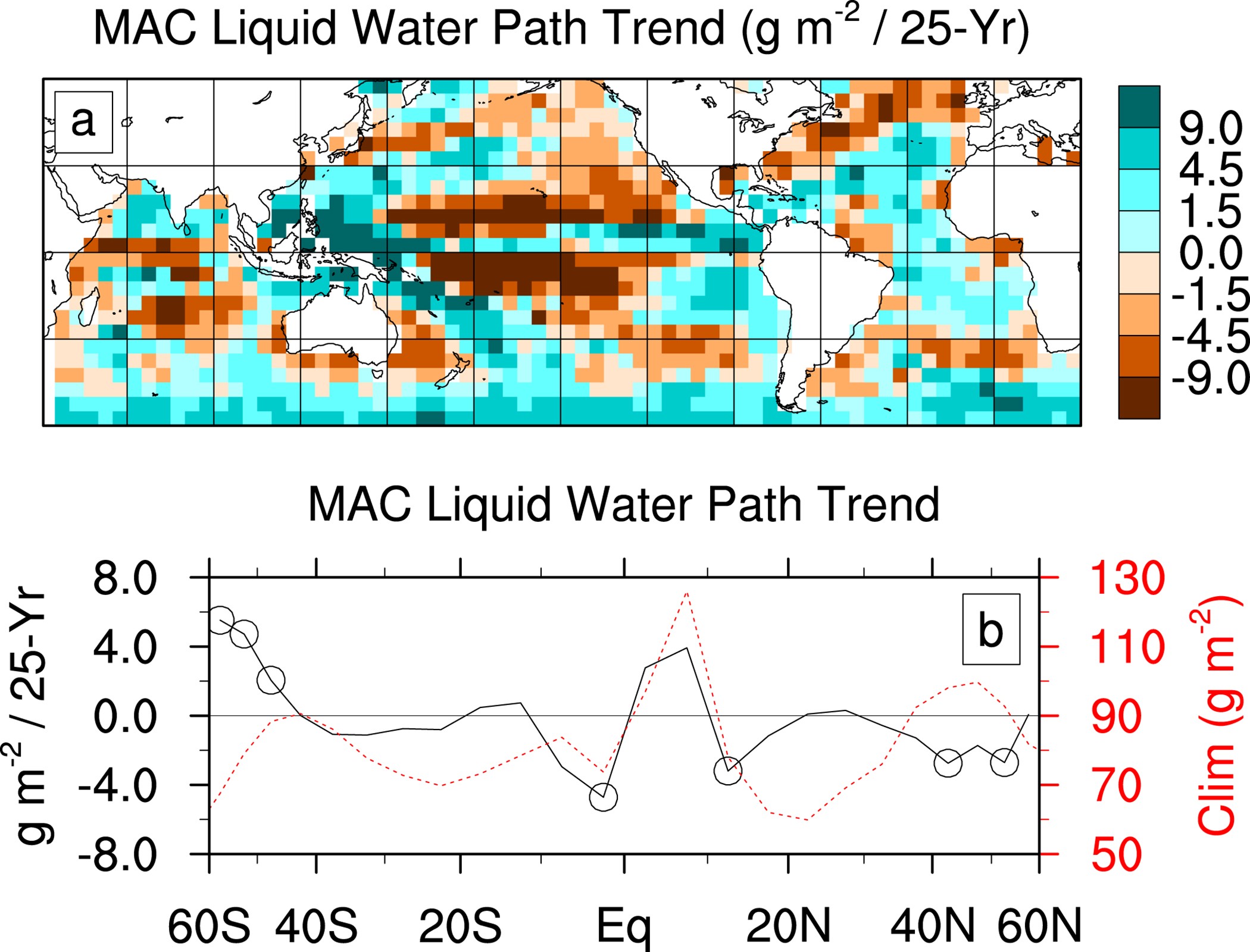

Extended Data Figure 1: Change in observed liquid water path during the period 1988–2014.
From: Evidence for climate change in the satellite cloud record
a, Linear trend in MAC-LWP liquid water path during January 1988 to December 2014. b, Zonal mean climatology (red) and trend (black) in MAC-LWP liquid water path during January 1988–December 2014 given as g m-2 per 25-year period. Circles indicate trend statistical significance (P < 0.05 two-sided). All trends are relative to the 60° S–60° N mean trend given as g m-2 per 25 year period.
