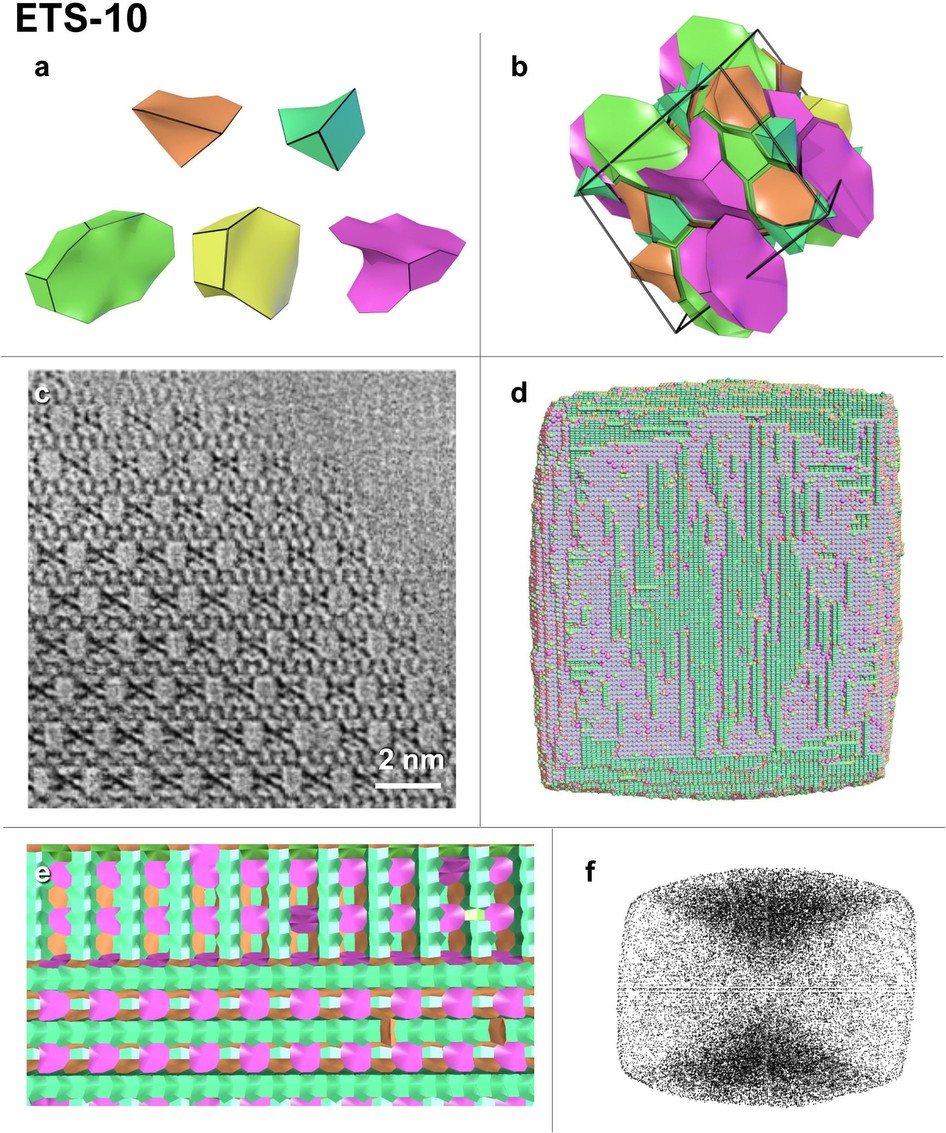

Extended Data Figure 6: Experimental and simulated data for the titanosilicate material ETS-10.
From: Predicting crystal growth via a unified kinetic three-dimensional partition model
a, b, ETS-10 is a nanoporous titanosilicate with a structure consisting of five tiles (a) connected in a monoclinic lattice (b). c, The structure has a very similar symmetry to zeolite β; however, the titanium is incorporated into titania rods surrounded by silica. High-resolution electron microscopy courtesy of O. Terasaki. d, e, These rods run alternately in orthogonal [110] and
directions and are found to be the dominant components for the crystal growth. f, Because the rods do not always connect and heal inside the crystal structure, there is a high concentration of internal silianol groups in a sector from the (001) faces to the centre of the crystal. Such sectoring in ETS-10 has been observed in Raman microscopy24. Supplementary Video 5 demonstrates how the rods in the ETS-10 framework grow in alternating orthogonal directions. The simulated crystals shown in d and f are approximately 0.25 μm × 0.25 μm × 0.05 μm and 0.10 μm × 0.10 μm × 0.10 μm in size, respectively; ΔUs = 2 kcal mol−1.
