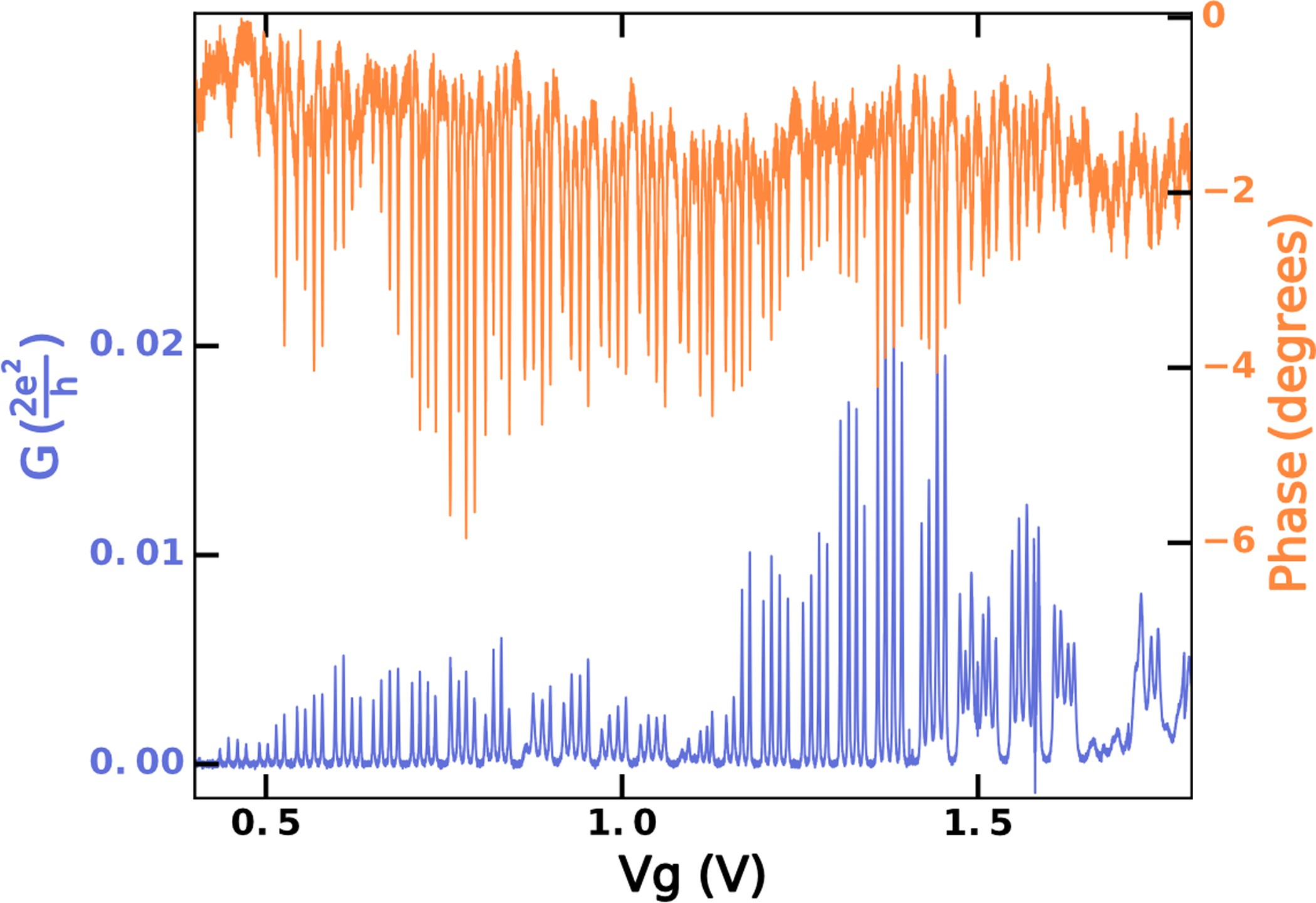

Extended Data Figure 2: Coulomb blockade regime.

Phase and conductance (G) plotted on a wide scale in the Coulomb blockade regime. The observation of groups of four peaks in both the conductance and the phase contrast arises from the spin/valley degeneracy of the nanotube spectrum.
