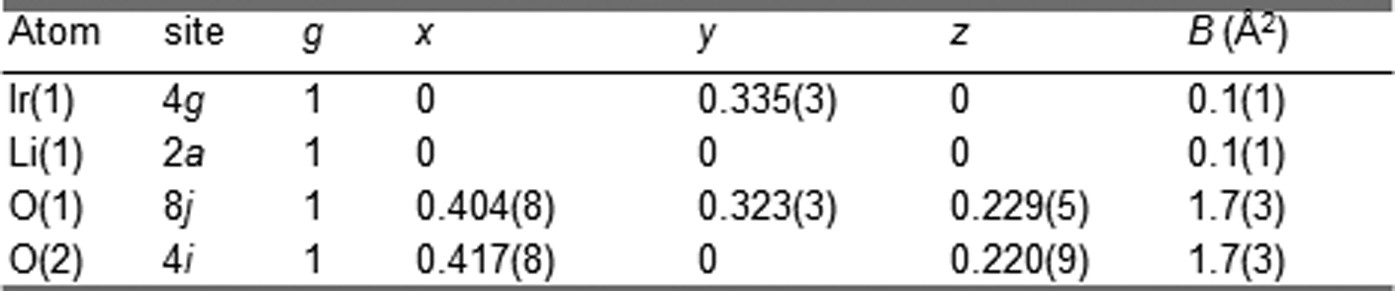

Extended Data Table 1 Refined structural parameters of H3LiIr2O6 at 300 K

From: A spin–orbital-entangled quantum liquid on a honeycomb lattice

  1. The space group is C2/m (number 12), Z = 2 and the lattice constants are a = 5.3489(8) Å, b = 9.2431(14) Å, c = 4.8734(6) Å and β = 111.440(12)°. g and B denote the site occupancy and the isotropic temperature factor, respectively. We did not refine the positions of the H atoms because of the small atomic scattering factor. The final R index is Rwp = 4.717%.
