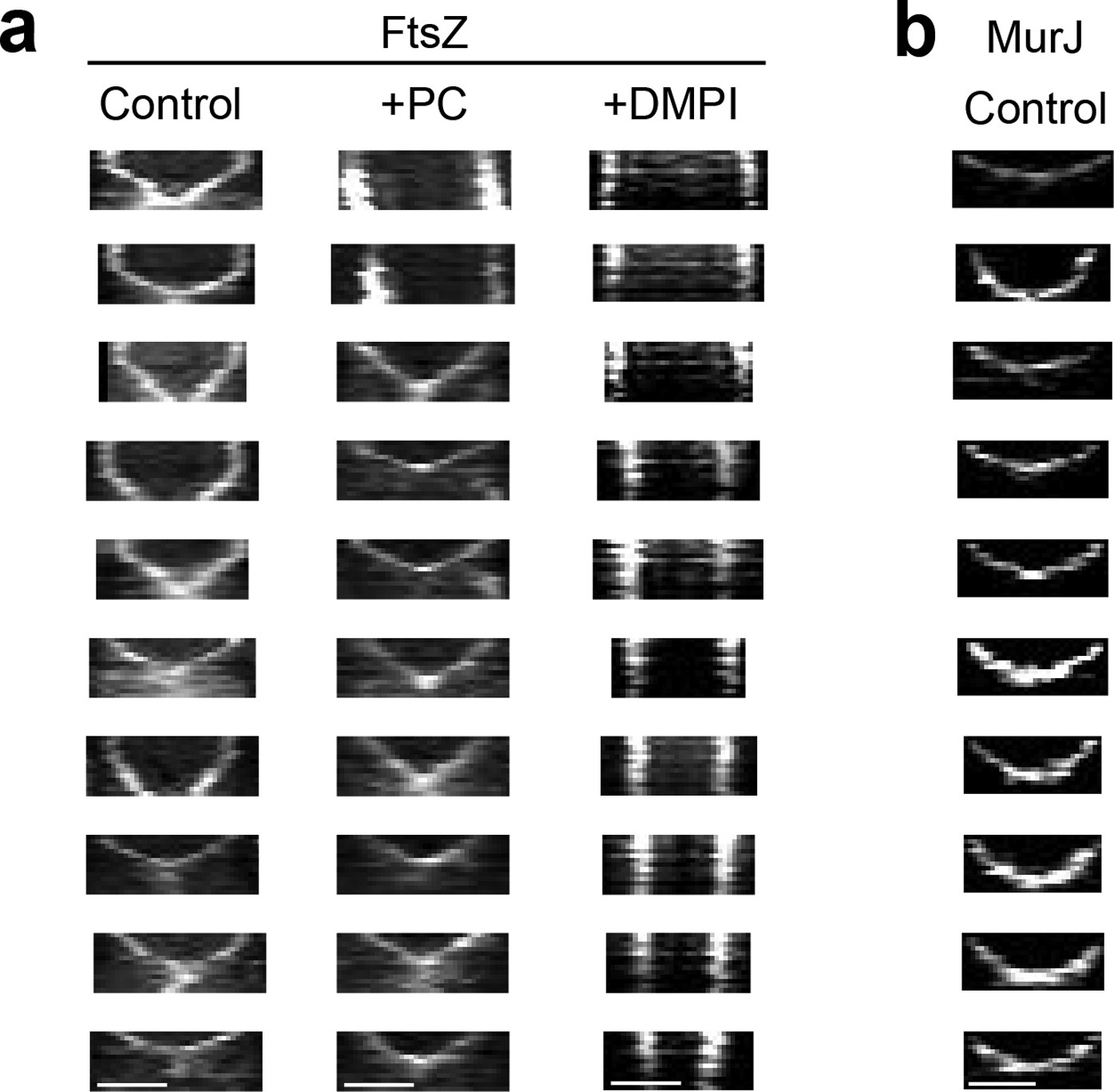

Extended Data Figure 6: Kymographs that show the constriction of FtsZ^55–56sGFP and MurJ–sGFP rings.
