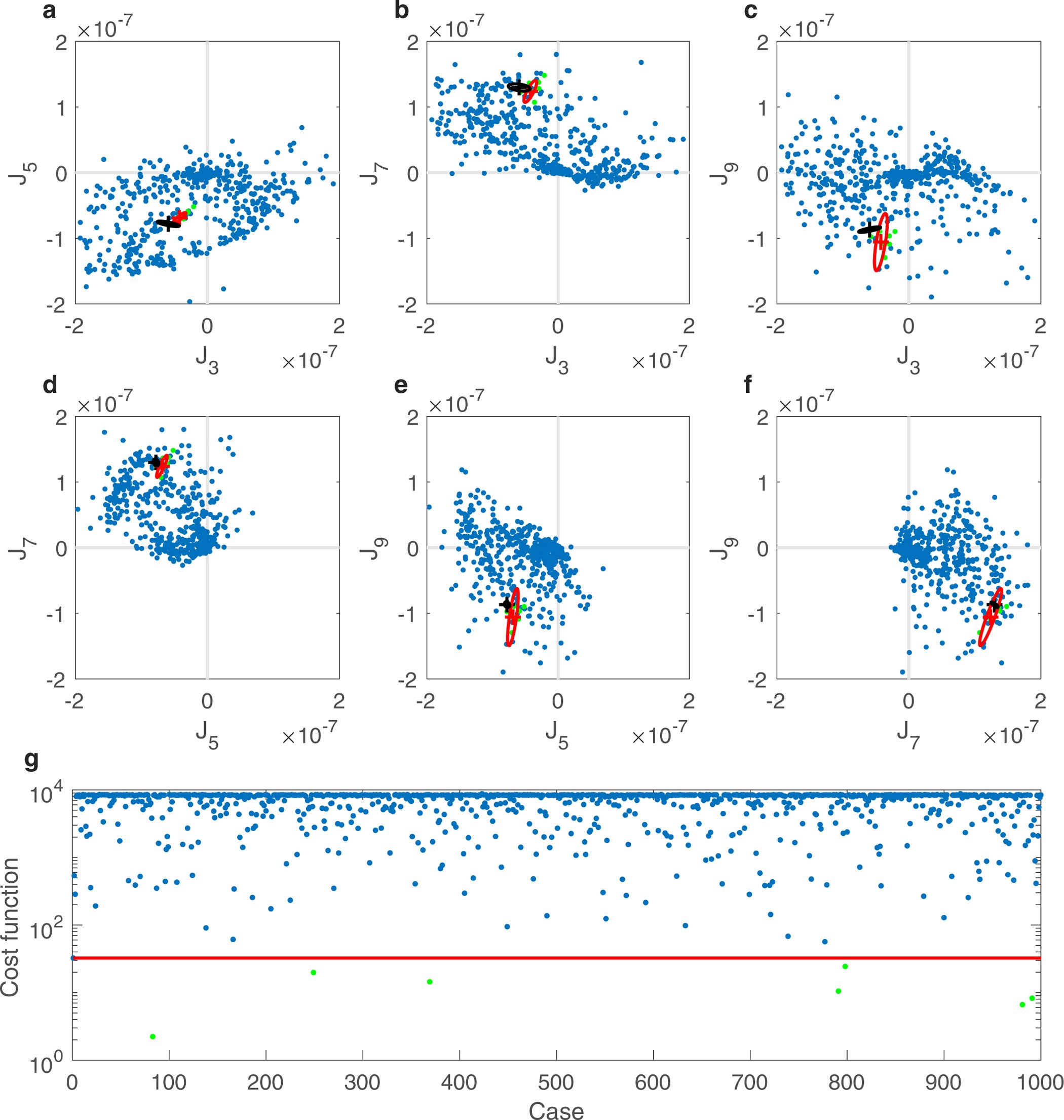

Extended Data Figure 4: Optimized solutions for the odd harmonics using random zonal wind profiles.
From: Jupiter’s atmospheric jet streams extend thousands of kilometres deep
a–f, Optimized solutions (blue) for J3, J5, J7 and J9 for flows with 1,000 different artificial meridional profiles of the zonal wind (as in Extended Data Fig. 3). The Juno measurements are shown in red with their corresponding uncertainty ellipse. The optimized solution corresponding to Jupiter’s observed cloud-level zonal wind profile (Fig. 3) is shown in black with the corresponding uncertainty ellipse. g, The cost function for all different meridional profiles explored, with the red line corresponding to the solution with the Jupiter zonal wind profile. Fewer than 1% of the solutions have lower cost functions (green).
