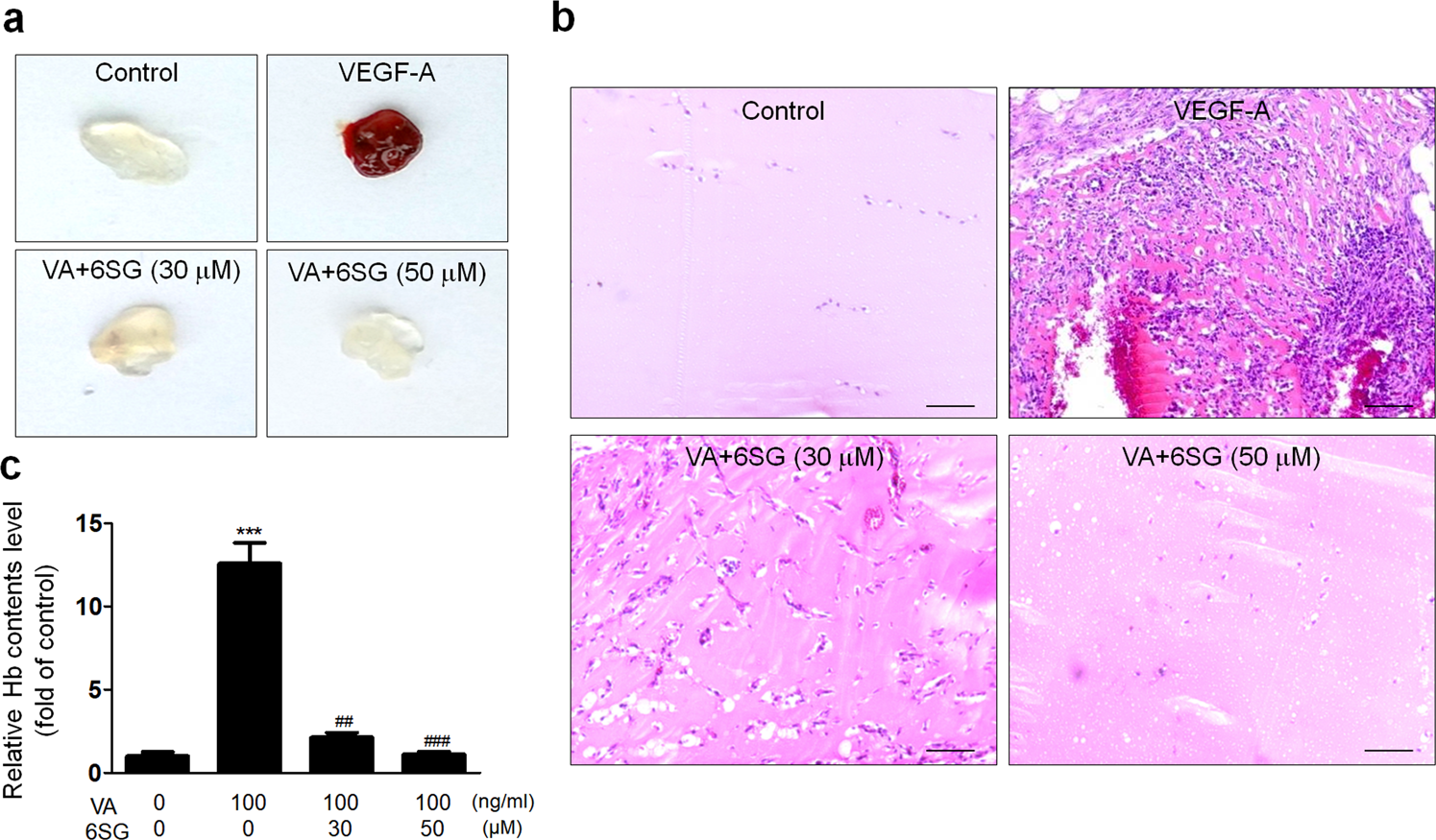

Fig. 6: Inhibitory effect of 6SG in VEGF-induced in vivo neovascularization.
From: 6′-Sialylgalactose inhibits vascular endothelial growth factor receptor 2-mediated angiogenesis
a Representative photographs and b histological images of Matrigel plugs in mice treated with VEGF-A (100 ng/ml) and/or 6SG at the indicated doses. c Quantification of functional vasculature inside the Matrigel plugs by measuring Hb content using Drabkin’s reagent. The graph shows the mean ± SD. ***P < 0.001 compared with the control (first lane); ##P < 0.01 and ###P < 0.001 compared with the positive control (second lane)
