Fig. 5: Expression of Clstn3 and Cadm1 in the hypothalamus.
From: Neural regulation of energy and bone homeostasis by the synaptic adhesion molecule Calsyntenin-3

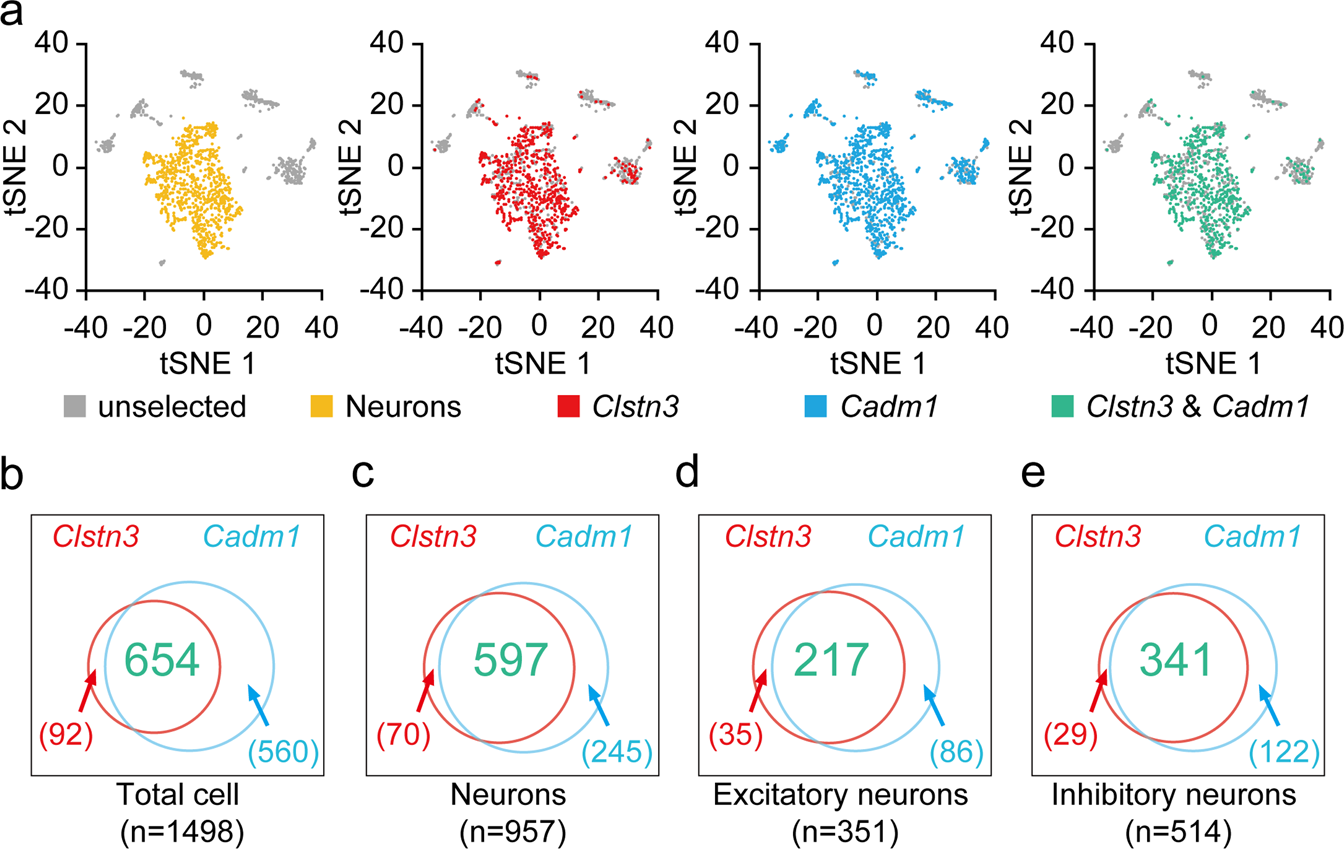

a t-SNE visualization of single cells identified by performing an unsupervised clustering analysis on published data. Yellow dots represent neurons, red dots are cells expressing Clstn3, blue dots are cells expressing Cadm1, and green dots are cells expressing Clstn3 and Cadm1 together. Gray dots indicate unselected cells. b–e Venn diagram for cells expressing Clstn3 and Cadm1. The number of cells expressing only Clstn3 is shown in red, the number of cells expressing only Cadm1 is shown in blue, and the number of cells expressing both Clstn3 and Cadm1 genes is shown in green. b Venn diagram for Clstn3- and Cadm1-expressing cells in the total population. c Venn diagram of Clstn3- and Cadm1-expressing cells in neuronal cell populations. d Venn diagram of Clstn3- and Cadm1-expressing cells in the populations expressing the excitatory neuronal marker gene Slc17a6. e Venn diagram of Clstn3- and Cadm1-expressing cells in populations expressing the inhibitory neuronal marker gene Slc32a1. The numbers of cells in each group are indicated.
